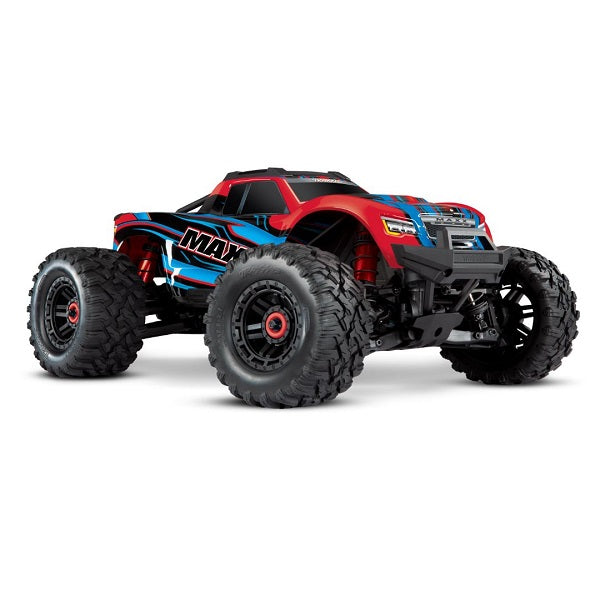

TRA89076 TRAXXAS MAXX 4S ORANGE RED

TRA89076 TRAXXAS MAXX 4S ORANGE RED

Regular price $602.00 USD
Regular price Sale price $602.00 USD
Sale Sold out
Shipping calculated at checkout.

The MAXX is such a unique beast. Smaller than an X-MAXX but larger than a Stampede 4X4 the Maxx is a XL hearted fighter in a more compact chassis. The Maxx is set to run on a 4s {14.8V} battery however a high power 3s {11.1v} battery is also super fun with this truck. We know you will love it

Look anywhere on the Maxx truck and it becomes clear that no detail was overlooked to provide the best possible performance.

Vehicle Specs
Length: 21.60 inches (549mm)
Front Track: 14.50 inches (368mm)
Rear Track: 14.50 inches (368mm)
Ground Clearance: 1.92 inches (49mm)
Weight: 9.7 lbs (4.4kg)
Height (ride): 9.12 inches (232mm)
Wheelbase: 12.96 inches (329mm)
Shock Length: 4.89 inches (129.2mm)
Tire Diameter: 5.51 inches (140mm)
Wheels Diameter: 2.8 / 3.6 inches (71 / 91mm)
Speed Control: Velineon VXL-4s
Motor (electric): 540XL (2400 kV)
Transmission: Single-Speed
Overall Drive Ratio: 11.86 (24 / 50)
Differential Type: Sealed, hardened steel bevel, limited slip
Gear Pitch: Module 1.0
Chassis Structure/Material: Composite Modular Tub
Brake Type: Electronic
Drive System: Shaft-driven 4WD
Steering: Double-shear bellcrank
Radio System: TQi 2.4GHz Transmitter with TSM receiver
Servo: Torque: 285oz-in.
Top Speed: 60+ MPH with 4S LiPo battery and optional gearing (sold separately)
Skill Level: 4
Battery Tray: 162mm L x 45mm W x 43mm H
Required Batteries: 4 "AA" (transmitter)
Motor Specs
Type: 2400 kv sensorless brushless
Weight: 317g (11.18oz)
Length: 3.58 inches (91mm)
Diameter: 1.41 inches (36mm)
Connector Type: Traxxas 6.5mm bullet connectors
ESC Specs
Input Voltage: 3S-4S LiPo (11.1V - 16.8V)
Case Size: 2.83 inches (72mm) x 2.32 inches (59mm) x 1.93 inches (49mm)
Weight: 201g (7.09oz)
BEC Voltage: 6.0 V
BEC Current Continuous: 10 A
BEC Current Peak: 20 A
Motor Connectors: Traxxas 6.5mm bullet connectors
Battery Connectors: Traxxas High-Current Connectors
Power Wire: 10-gauge Maxx Cable
Ports: RX input, auxiliary fan, Traxxas accessory port

Features:

  • VXL-4s Waterproof Electronic Speed Control
    • 3S-4S LiPo compatible
    • Built-in cooling fan
    • Real-time telemetry via Traxxas Link
    • Machined heat sinks
    • 10-gauge silicone wire
    • Integrated protection circuits
    • LED status lights
    • Waterproof
  • Velineon 540XL Brushless Motor
    • Long format brushless motor
    • 4-pole 2400 kV
    • 5mm output shaft
    • Aluminum heat sink
    • Cooling fan
  • 55+ MPH out of the box using single 4S LiPo battery (sold separately)
  • 60+ MPH with optional gearing and single 4S LiPo battery (sold separately)
  • Traxxas Stability Management
    • Helps prevents spinouts and loss of control
    • Adjusts from off to 100% assistance from the transmitter
  • TQi 2.4GHz High Output Radio System
    • TQi 2.4GHz transmitter
    • Traxxas Link enabled
    • TQi 2.4GHz 5-channel micro receiver (#6533) with fail-safe security and integrated telemetry ports
    • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models - just switch on and drive, "model selection" is not required
    • Multi-Function knob
    • Adjustable steering and throttle percentage (dual rates)
    • Adjustable steering and throttle sensitivity (exponential)
    • Adjustable steering and throttle end points
    • High 13ms frame rate and near-zero latency for responsive control
    • Telemetry-ready 5-channel micro receiver
  • Clipless Body Mount System
    • Quick one-hand installation and removal
    • Uses pivoting rear latch mechanism
    • Eliminates body posts and clips
    • Reinforced for extra protection against tearing
  • Drivetrain
    • Full-time shaft-driven 4-wheel drive
    • Torque-Biasing Center Drive absorbs shocks and distributes power
    • 17mm keyed wheel hex with 5mm nut
    • Sealed, silicone fluid-filled diffs with large module ring and pinion gears
    • Heavy-duty Cush Drive
    • Extreme-duty telescoping driveshafts
    • Splined aluminum center driveshaft
  • Secure Motor Mounting System
    • Precise, fixed gear mesh adjustments
    • Motor retention separate from gear mesh
    • Full-length motor cradle
  • New Modular Composite Chassis
    • Modular chassis design interlocks with front and rear bulkheads
    • Absorbs and distributes impact energy
    • Easy to service and access components
    • Driveline is sealed in the chassis to keep out dirt and grit
  • Easy Battery Access
    • Battery is protected deep in the chassis
    • Battery hold-downs pivot for easy access
    • More secure than conventional retention systems
  • Heavy-Duty Steering Bellcranks and Servo
    • Large-scale high-output steering servo
      • 285oz-in of torque
      • 0.18 sec transit speed
    • New mounting system to fully support case
    • Heavy-duty double-shear bellcranks
  • Suspension
      • Engineered to optimize suspension travel and steering angles
      • All critical suspension points have double shear strength
      • Steel pivot balls
      • C-hub and steering block geometry maximizes steering angle
      • Fixed, high-strength camber and toe links

    Steel upper and lower tie barsFull contact sealed bearings used throughout driveline

  • New GT-Maxx Shocks
    • Machined aluminum threaded body
    • Extra-large bore and capacity
    • Large-diameter damper shaft
    • Lower seal cartridge with dual X-rings
    • Adjustable upper spring retainer
    • Plastic shock caps with pivot balls
    • Lower spring perches bolted on
  • Bumpers
    • Tough energy absorbing front and rear bumpers
    • Lower front and rear skids for impact and abrasion resistance
    • Integrated nerf bars for side impact resistance
    • Wheelie bar with integrated carry handle
  • Wheels/Tires
    • Tough 2.8" wheels with keyed 17mm hex receptor
    • Large 5.5" all-terrain dual-diameter tires
    • 1-piece foam inserts
    • Pre-glued and ready for action
    • TSM rated

What's In The Box:

  • Maxx, Ready-To-Race model with Traxxas 540XL brushless motor
  • VXL-4s waterproof electronic speed control with integrated telemetry
  • Quick Start Guide
  • TQi 2.4GHz radio system
  • High quality maintenance tools

What You'll Need:

  • LiPo Battery
    • Traxxas recommends a 4-cell 14.8V Power Cell LiPo battery for maximum performance. A 3-cell 11.1V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.
  • LiPo Balance Charger with iD
    • Traxxas EZ-Peak Live 4s-capable charger is recommended for easy and fast charging performance (TRA2971).
  • AA Alkaline Batteries
    • Four AA alkaline batteries for the transmitter.
