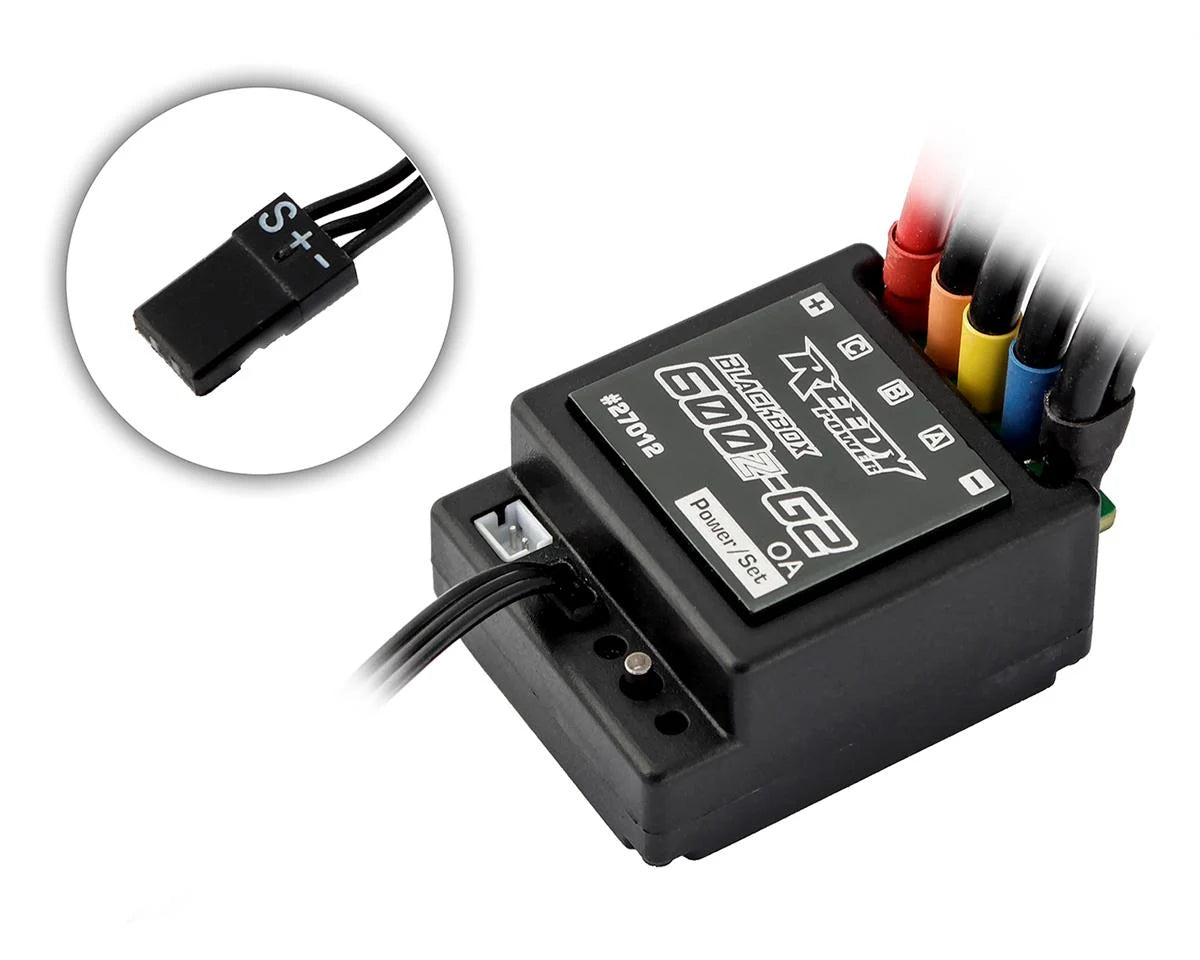

Blackbox 600Z-G2 2S Zero-Timing ESC

ASC27012

The Reedy Blackbox 600Z-G2 Zero-Timing Competition ESC is an excellent option for entry-level racers thanks to its economical price, versatility, race-proven performance, and improved durability.

Excellent throttle and brake feel, a wide range of adjustability, and upgraded hardware make the Blackbox 600Z-G2 suitable for a variety of racing applications, including entry level and cost-controlled “spec” race programs that mandate a specific ESC.

When combined with Sonic 540-FT motors, the pairing also offers the perfect solution for clubs and tracks that are striving to improve entry-level participation or introduce cost-controlled classes for racers of all skill levels.

Features:

• Lightweight plastic case with compact footprint

• Low-profile heat sink

• Fully adjustable brake and throttle functions

• On-board, single-button programming

• Optional Programmer2 programming

• Zero-timing R.O.A.R.-approved software (pending)

• Low-resistance circuitry

• Precision throttle and brake control

• Solder tabs for easy wire placement

• Silicone power wires

• Compact external capacitor

• Firmware updateable

• Competition proven

Adjustable Settings

• Operation Mode – Select Forward/Brake (F/B) or Forward/Brake/Reverse (F/B/R) operation.

• Drag Brake – Adjust automatic braking strength when the throttle trigger is returned to neutral.

• Power Profile – Increase or decreases punch.

• Drive Frequency – Adjust to create a smoother or more aggressive throttle feel.

• Brake Frequency – Adjust to create a smoother or more aggressive brake feel.

• Restore Default – Restore the factory default settings.

Specifications:
Voltage Input: 2S LiPo
On Resistance: 0.0018
Continuous Current: 60
Dimensions: 40.2x31.0x18.8mm
Weight w/o Wires: 37g
Motor Limit: 13.5T
