HOT RACING
105mm Aluminum Heavy Duty Big Bore Shocks (2)
105mm Aluminum Heavy Duty Big Bore Shocks (2)
Couldn't load pickup availability

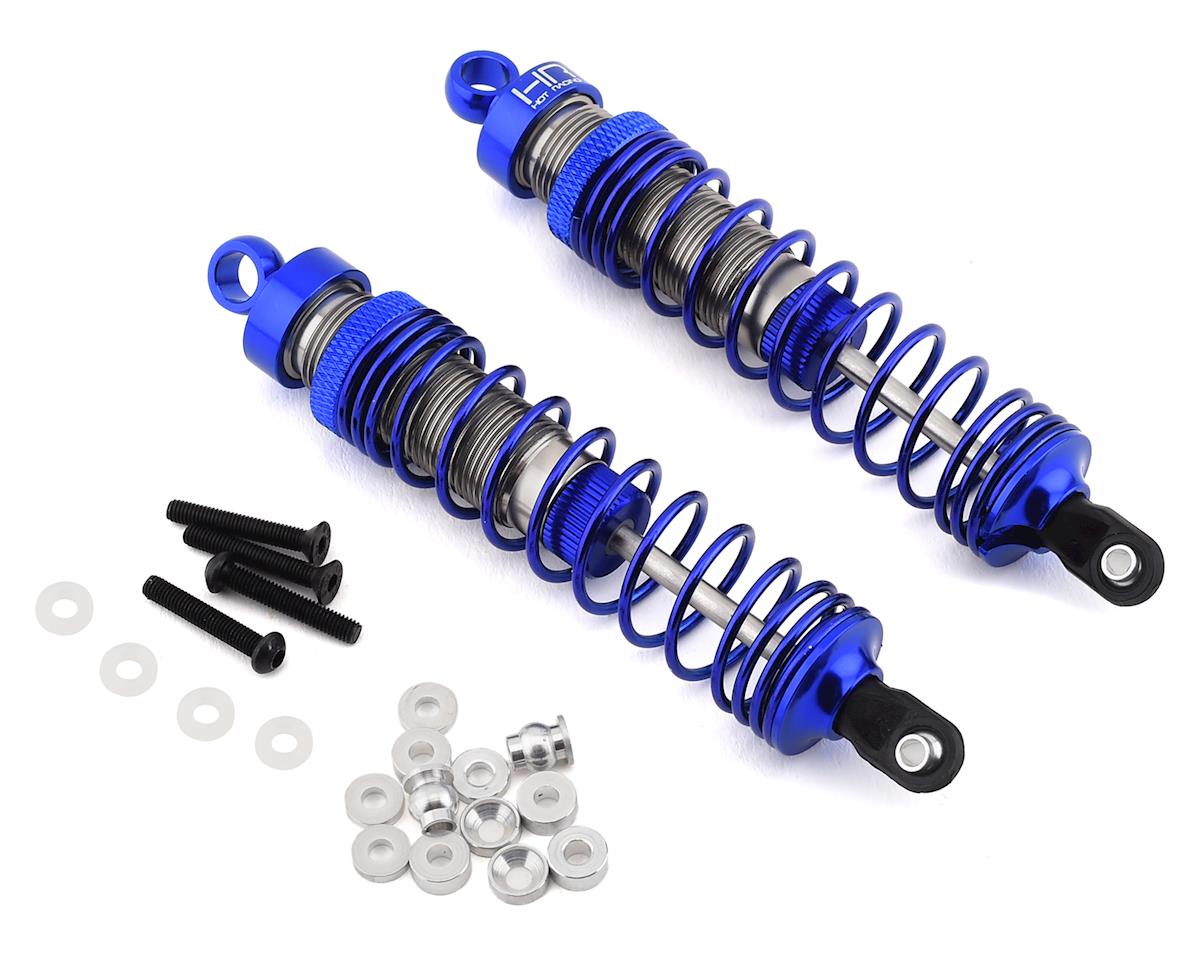

This is a pack of two Hot Racing 105mm Aluminum Heavy Duty Big Bore Shocks. These Hot Racing 105mm big bore threaded body aluminum shocks are for use with many Traxxas and other 1/10 scale off-road vehicles using 105mm length shocks.
Features:
CNC machined 6061-T6 billet aluminum shock bodies, collars, caps, and spring retainers
"Big Bore" threaded shock bodies
CNC machined 11mm Delrin pistons
3.5mm stainless steel shock shafts
Gunmetal and blue anodized aluminum components
Vented shock caps with bladder seals for consistent rebound dampening
Threaded shock collars with o-rings to prevent unwanted movement
Composite plastic lower shock ends with aluminum balls
Fully assembled, just add shock oil and bleed
Specifications:
Extended length: 105mm
Compressed length: 75mm
Overall length: 115mm
Diameter: 19mm
Spring: ~5.8lb/in, 1.54mm wire, 14 turn dual rate, 19.3mm OD, 72mm long
Includes:
(2) assembled shocks
(2) M3x20mm flat head cap screws
(2) M3x18mm button head cap screws
(2) 3mm countersunk washers
(2) 5.9 hollow balls
(4) 1.5mm thick spacers
(4) 3mm thick spacers
