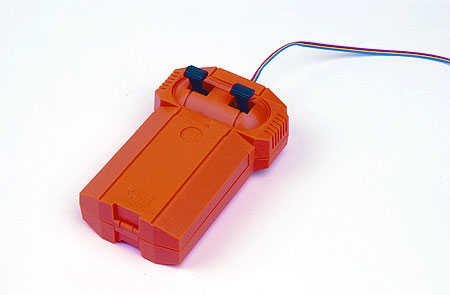

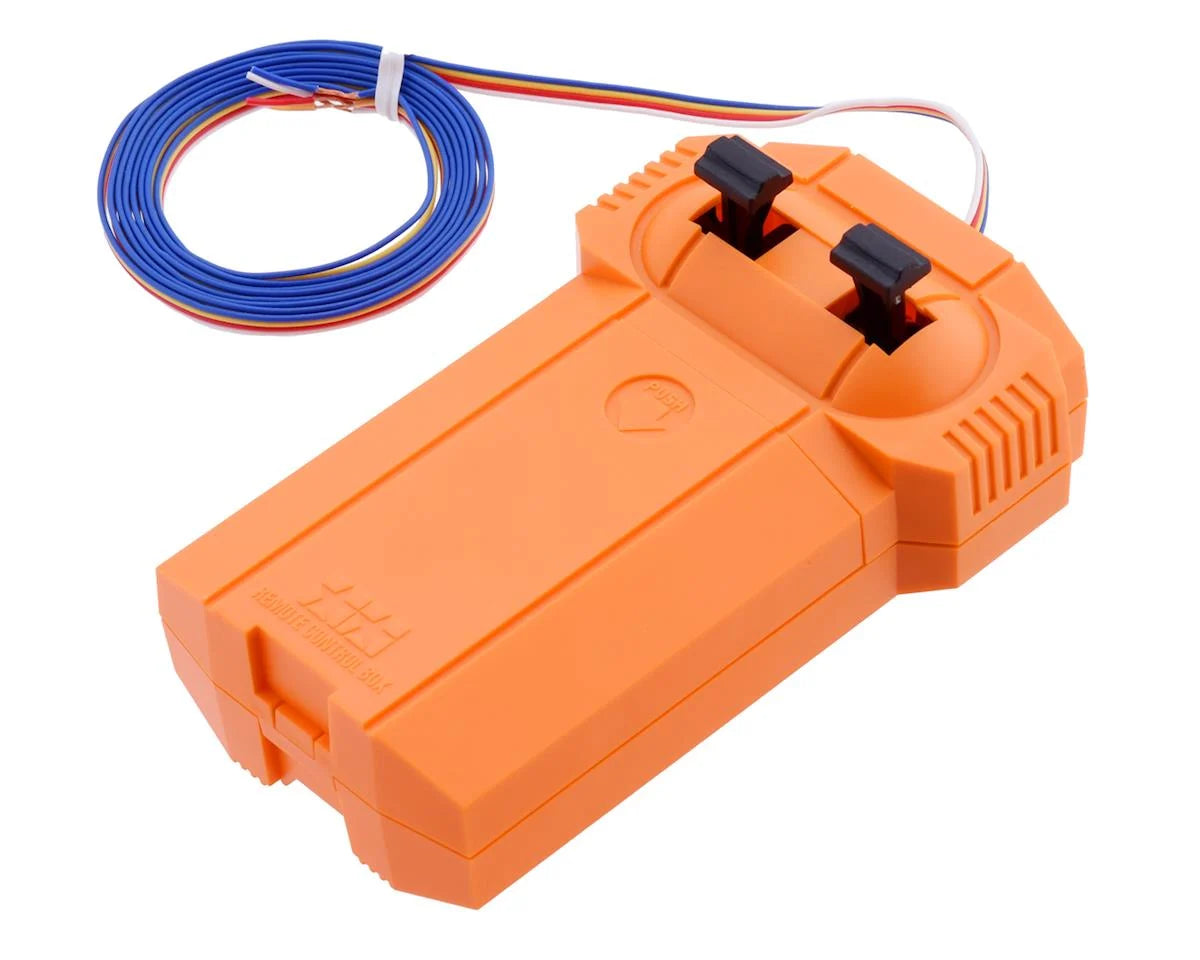

2-CHANNEL REMOTE CONTROL BOX

TAM70102

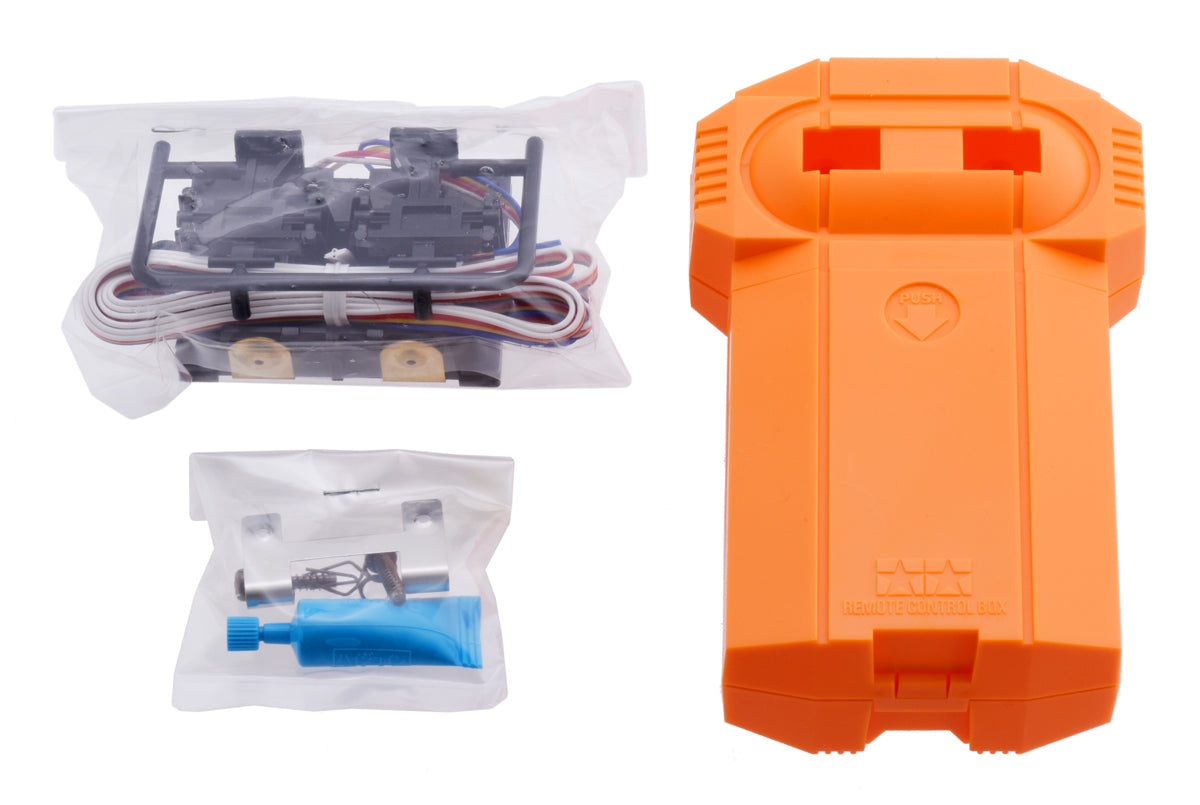

The Tamiya 70102 2-Channel Remote Control Box uses two C or AA batteries (not included) to control up to two motors independently. This is a kit, so assembly is required.

The 2-channel remote control box is a great way to control Tamiya motors and gearboxes, which you can use with other Tamiya products to build your own robot or project. It is well suited for a differential drive (or skid steered) robot. Similarly to the Tamiya 70106 4-Channel Remote Control Box, the pair of single-axis control sticks used in this kit have a self-centering function, so they will automatically return to the neutral position when released. The cables that attach to the motors are pre-wired to the control board and measure about 130 cm (over 4 feet) long.

Feature summary

• Two channels
• Pre-wired switches
• Wires for connection to motors are about 130 cm (4.25 feet) long
• Two C or AA batteries required (not included)
• Assembly required; see the instructions (612k pdf) for details
