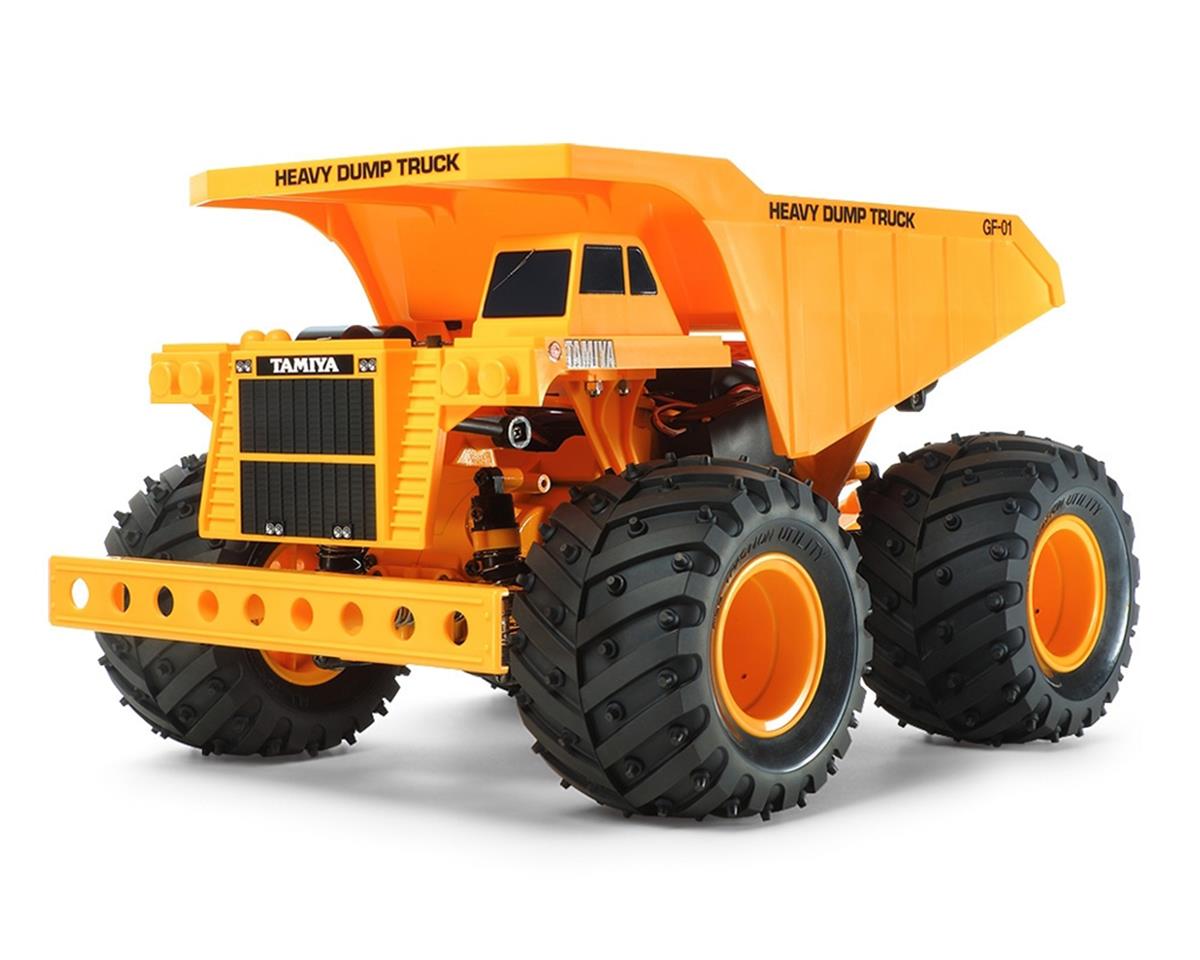

Heavy Dump Truck 1/24 Monster Truck Kit (GF-01)

The Tamiya 1/24 Heavy Dump Truck kit is an homage to full size dump trucks with a Monster Truck twist! Large off-road tires combined with the popular GF-01 chassis creates a capable vehicle that meshes the ability to traverse rugged terrain, while keeping the scale looks of one of the most iconic construction platforms.

The GF-01 chassis gives you gear driven 4wd drivetrain similar to the 2wd platforms used in iconic Tamiya vehicles like the Wild Willy 2, Volkswagen Type 2 and the Farm King Wheelie. With front and rear gearboxes to complement the center mounted motor, power is transferred evenly to both axles creating the additional traction needed to haul heavy loads.

NOTE: Finished kit shown in photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.

This kit includes an ESC

Features:

Iconic Dump Truck body
Gear-driven 4WD chassis
Tough monocoque frame
4-wheel double wishbone suspension
Wheelie bar with roller to prevent the model from flipping
Plastic bushings
ABS Plastic Body (Body Stickers Included)
ABS Plastic Chassis
Three Bevel Gear Differentials
Torque tuned 540 Motor

INCLUDES ESC
1/24 Scale
Friction type Shock Damper
Fixed Gear Ratio (18.03:1)
Specifications:
Length: 350mm
Width: 270mm
Height:210mm
Wheelbase: 174mm
Tread (Front & Rear): 200mm
Tire Width/Diameter: 68mm/115mm

Includes:

(1) 1/24 Heavy Dump Truck Kit (GF-01)

Needed to Complete:

• 2 channel radio system
• Steering servo
• 7.2 - 7.4 volt battery
• Compatible Charger
