HRATD90X06 Aluminum 90mm Heavy Duty Big Bore Shocks, (2pcs)

HRATD90X06 Aluminum 90mm Heavy Duty Big Bore Shocks, (2pcs)

Regular price $59.99 CAD
Regular price $59.99 CAD Sale price $59.99 CAD
Sale Sold out
Shipping calculated at checkout.

90mm big bore threaded body aluminum shocks for many 1/10th scale off-road vehicles using 90mm shocks. Some applications include, but are not limited to: Traxxas Bandit front, Nitro Rustler/Slash/Sport/Stampede front, Rustler front, Slash 2WD front, Slash 4×4 front, Stampede 2WD front, Stampede 4×4 front; and and other similar vehicles.

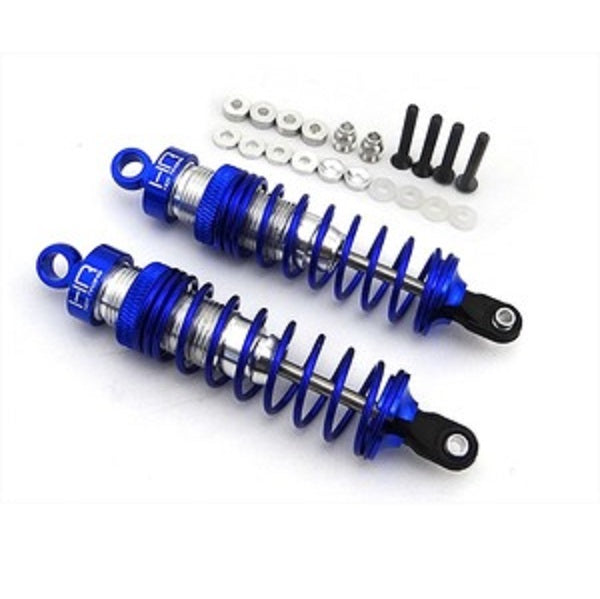

Two (2) assembled shocks
Two (2) M3x20mm flat head cap screws
Two (2) M3x18mm button head cap screws
Two (2) 3mm countersunk washers
Two (2) 5.9 hollow balls
Four (4) 1.5mm thick spacers
Four (4) 3mm thick spacers


  • CNC machined 6061-T6 billet aluminum shock bodies, collars, caps, and spring retainers
  • "Big Bore" threaded shock bodies
  • CNC machined 11mm Delrin pistons
  • 3.5mm stainless steel shock shafts
  • Silver and blue anodized aluminum components
  • Vented shock caps with bladder seals for consistent rebound dampening


  • Extended length: 90mm
  • Overall length: 100mm
  • Spring: 5.8lb per inch, 1.54mm wire, 10 turn dual rate, 19.3mm OD
