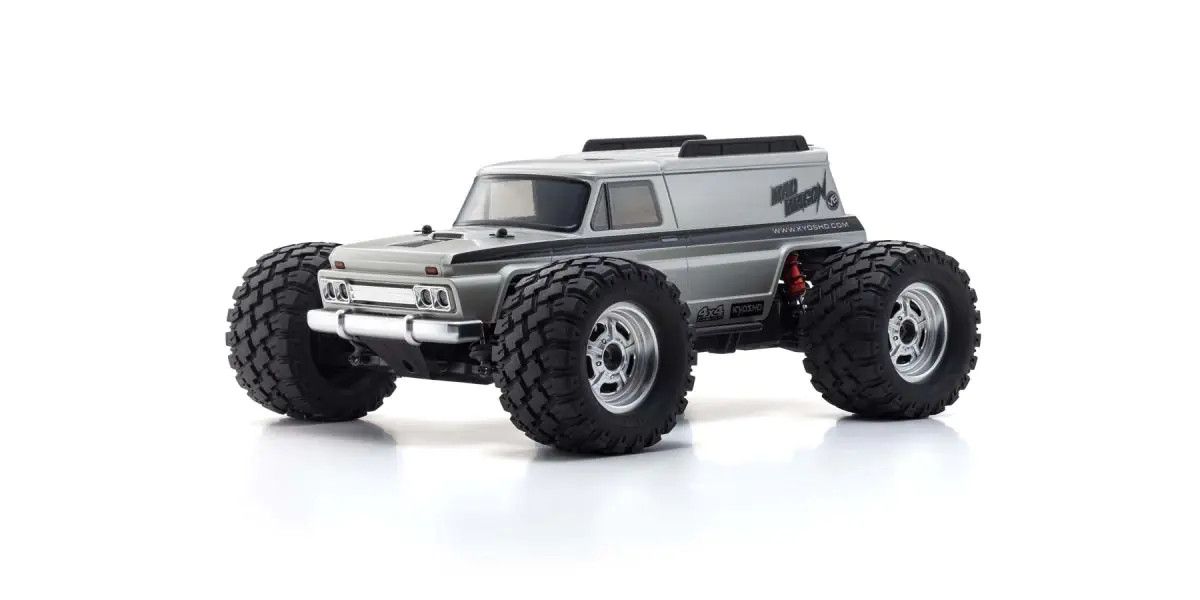

Mad Wagon VE Kit

KYO34702

Despite being an unassembled kit, the KB10W Mad Wagon VE simplifies the assembly process by pre-building the most complex parts. The front, center, and rear gearboxes come pre-assembled and ensure that even beginners can complete the kit without much hassle. This thoughtful inclusion significantly reduces assembly time and allows users to focus on understanding and enjoying the vehicle.

Upgraded Standard Parts

The kit version of the Mad Wagon VE includes numerous parts that were previously only available as optional upgrades. This feature ensures that users get a highly-tuned model right out of the box, offering excellent value for money. Standard inclusions such as the aluminum oil shocks, machined steel bevel and ring gears, and high-grip tires enhance the truck's performance and durability, making it a superior choice for both entry-level and competition-grade enthusiasts.

Customization and Styling

This KB10W Mad Wagon VE kit features an unpainted ultra-scale body inspired by 1980s-era station wagons, allowing users to customize their vehicle to their liking. The kit includes plated parts such as bumpers and grilles that don't need painting and an updated decal set that recreates true-to-scale realism. Additionally, the body is equipped with light buckets compatible with optional LED units (KYO97054-4B) available separately, offering further customization options to create a unique and personalized look.

Features:

• Chassis kit approximately 30% pre-assembled

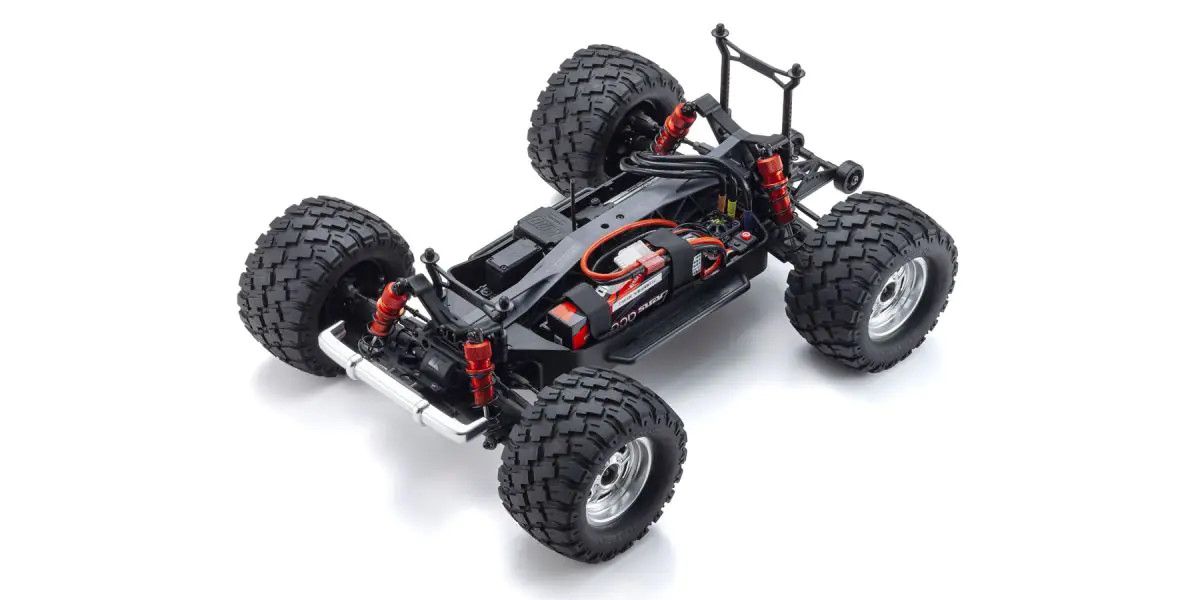

• Shaft-type 4WD chassis with double wishbone suspension
• Lightweight chassis with various standard upgrade parts
• Wagon-style ultra-scale body

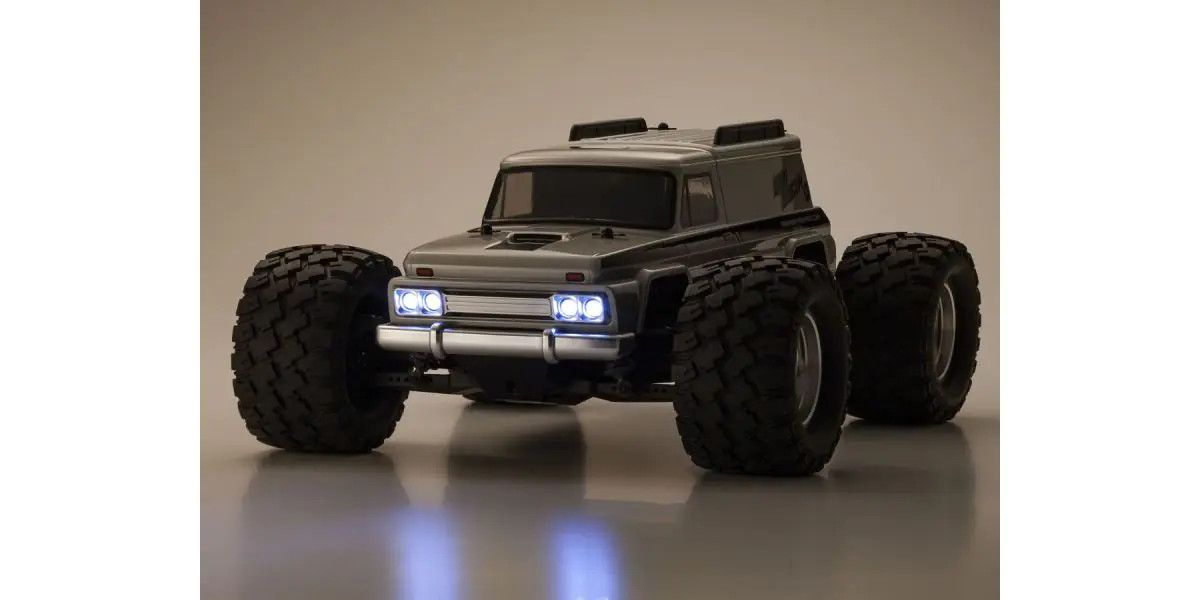

• Body light buckets compatible with optional LED unit (KYO97054-4B)
• Full ball bearing specifications for drive efficiency
• Telescoping resin universal shaft to reduce drive loss
• Equipped with high-grip 2.8in tires and wheels

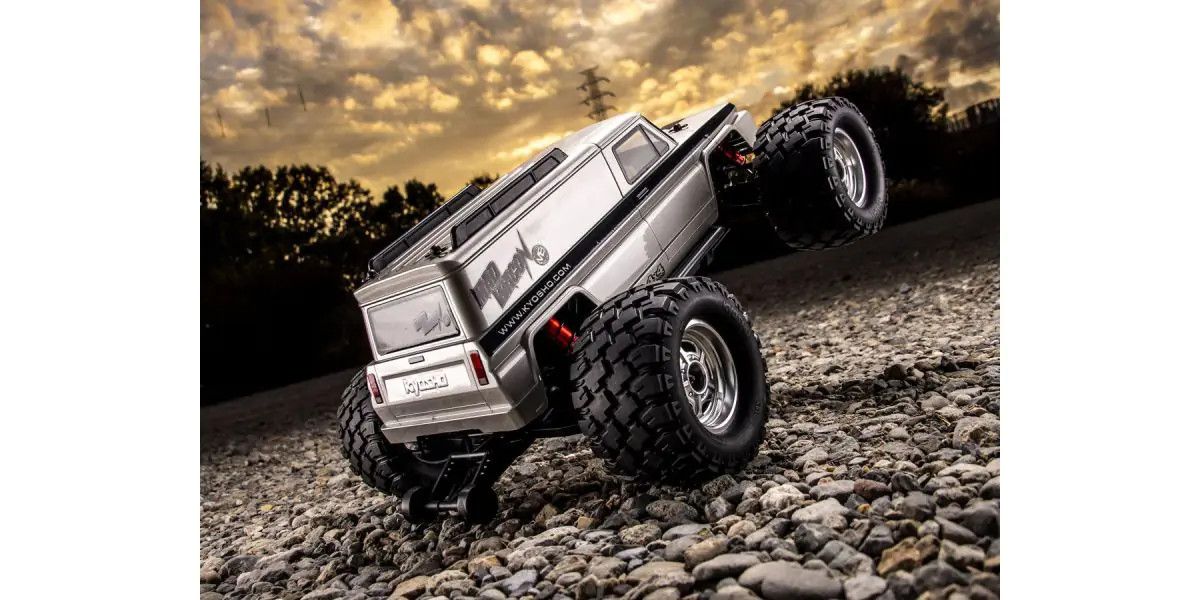

• Equipped with a wheelie bar that prevents flipping under hard acceleration
• Unassembled kit offers a better understanding of the vehicle structure

Includes:

• Chassis Kit
• Clear Body
• Decal
• 1.5mm/2.0mm/2.5mm hex wrench
• Cross wrench
• 4/5/5.5/7/10mm Integrated spanner
• #400 Shock oil 30cc
• #10000 diff oil 30cc

Required:

• Battery for driving (2-3S LiPo battery) / Installable battery size:143x47x30mm
• Charger for LiPo battery
• 2ch 1 servo R/C system for cars / Receiver size: 38x25x20mm
• Servo Recommended:  Servo size: 41x20.5x40mm
• ESC
• Brushless Motor
