HOBBYWING

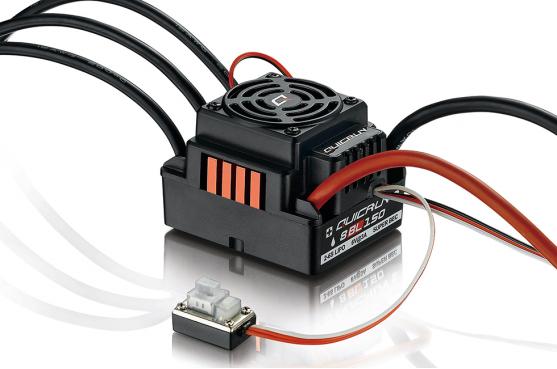

QuicRun 8BL150 Brushless ESC

QuicRun 8BL150 Brushless ESC

$114.00 USD
$114.00 USD
Sale Sold out
Shipping calculated at checkout.

Motor Limit:
For 4S Lipo or 12 cells NiMH: 4274-size or smaller motor with the KV<3000
For 6S Lipo or 18 cells NiMH: 4274-size or smaller motor with the KV<2400

Features:

  • Water-proof and dust-proof for all-weather races.
  • External programming port, easy to connect to the Program Card when setting the ESC.
  • Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment.
  • 9 steps of acceleration (/punch) adjustment from "soft" to "Very aggressive" to fit for different kinds of models, tires and tracks.
  • Multiple protections: Low voltage cut-off protection/Over-heat protection/Throttle signal loss protection/Motor lock-up protection.
  • One-button (the "SET" button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.

    • Specifications:

  • Cont./Peak Current: 150A/950A
  • Motor Type Supported: Sensorless Brushless Motor
  • Battery: 9-18 Cells NiMH 3-6S Lipo
  • BEC Output: 6V/3A (Switch Mode)
  • External Program Port: Available
