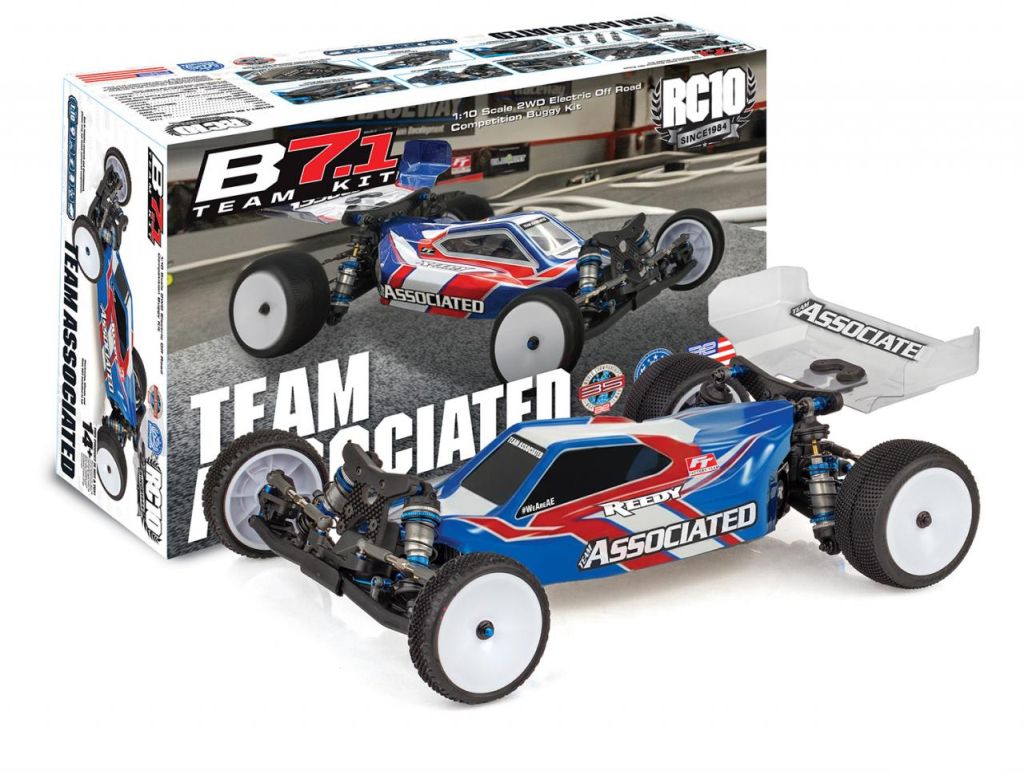

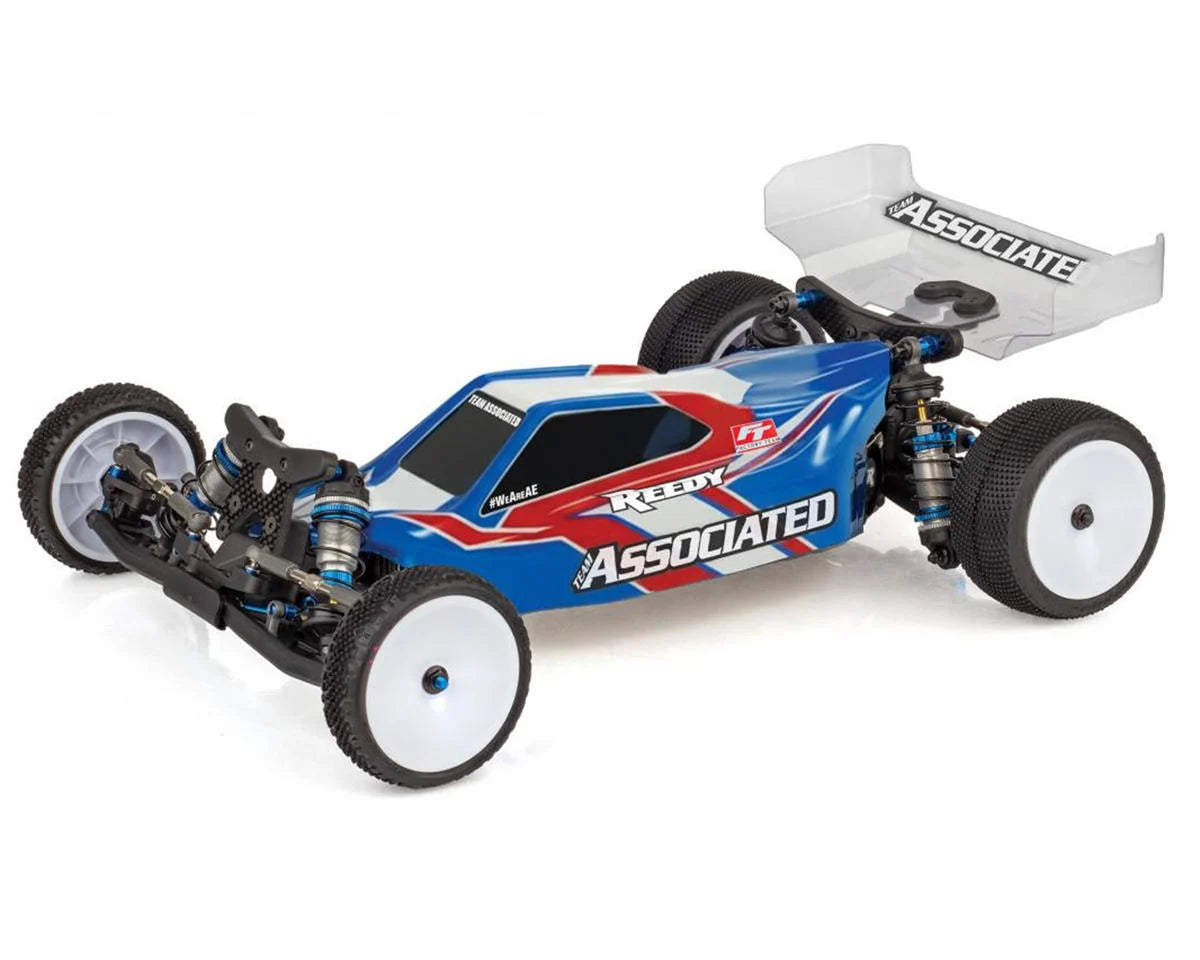

RC10B7.1 Team 1/10 2WD Electric Buggy Kit (Carpet & Astroturf Version)

ASC90046

RC10B7.1 Team Kit

Racing Heritage Refined

Key updates include a revised 3-gear laydown transmission that reduces rotational mass, strengthened front suspension arms with a hinge pin brace for added durability, updated steering and caster blocks for easier assembly and lighter weight, lowered shock towers and arm mounts for a reduced center of gravity, and enhanced drivetrain options that improve efficiency, consistency, and overall race-day performance.

Advanced Suspension Geometry

Both kits feature updated long-arm suspension, KPI-adjustable steering blocks, and refined arm mounts that dramatically increase grip, stability, and corner speed, delivering a smoother, more predictable feel across changing track conditions.

Track-Specific Performance

The RC10B7.1 is optimized for carpet, astroturf, and high-grip clay with a high-volume gear differential, stiffer springs, and higher pack pistons

While the RC10B7.1D is tuned for dirt and low-grip surfaces using a ball differential, softer springs, and smoother damping for maximum control.

Pro-Level Tunability

With fully interchangeable parts between both kits, a lightweight 7075-T6 aluminum chassis, big-bore shocks, anti-roll bars (B7.1), and multiple suspension and drivetrain options, the RC10B7.1 platform offers racers unmatched adjustability, durability, and race-winning potential.

FEATURES:

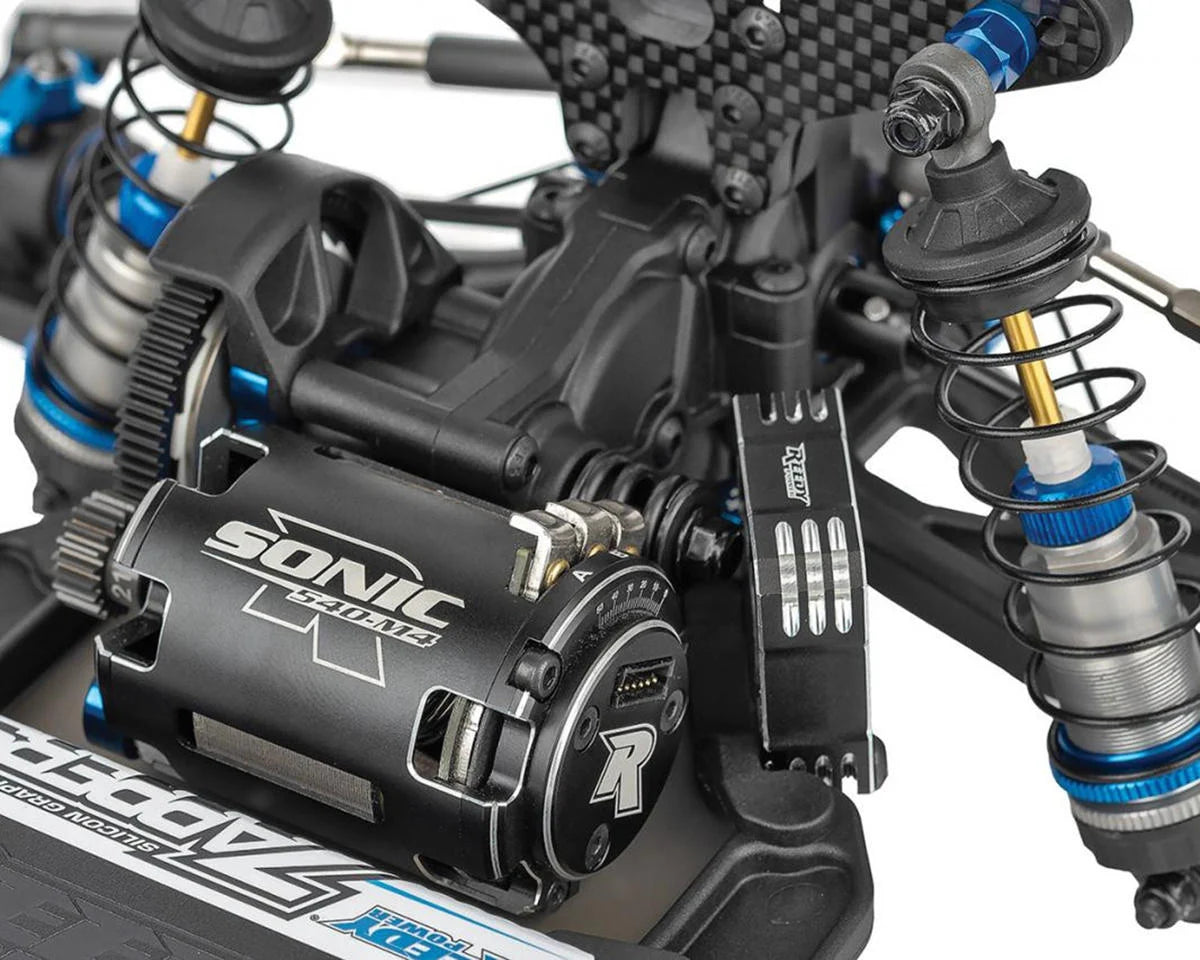

• Includes 3-Gear Laydown Transmission that maintains original B7 motor position while reducing rotational weight and drag
• Steering and Caster Block Assembly simplifies assembly and reduces weight without sacrificing tunability
• 2mm Front Ballstud Mount included along with updated Top Plate and Standard Ballstud Mount

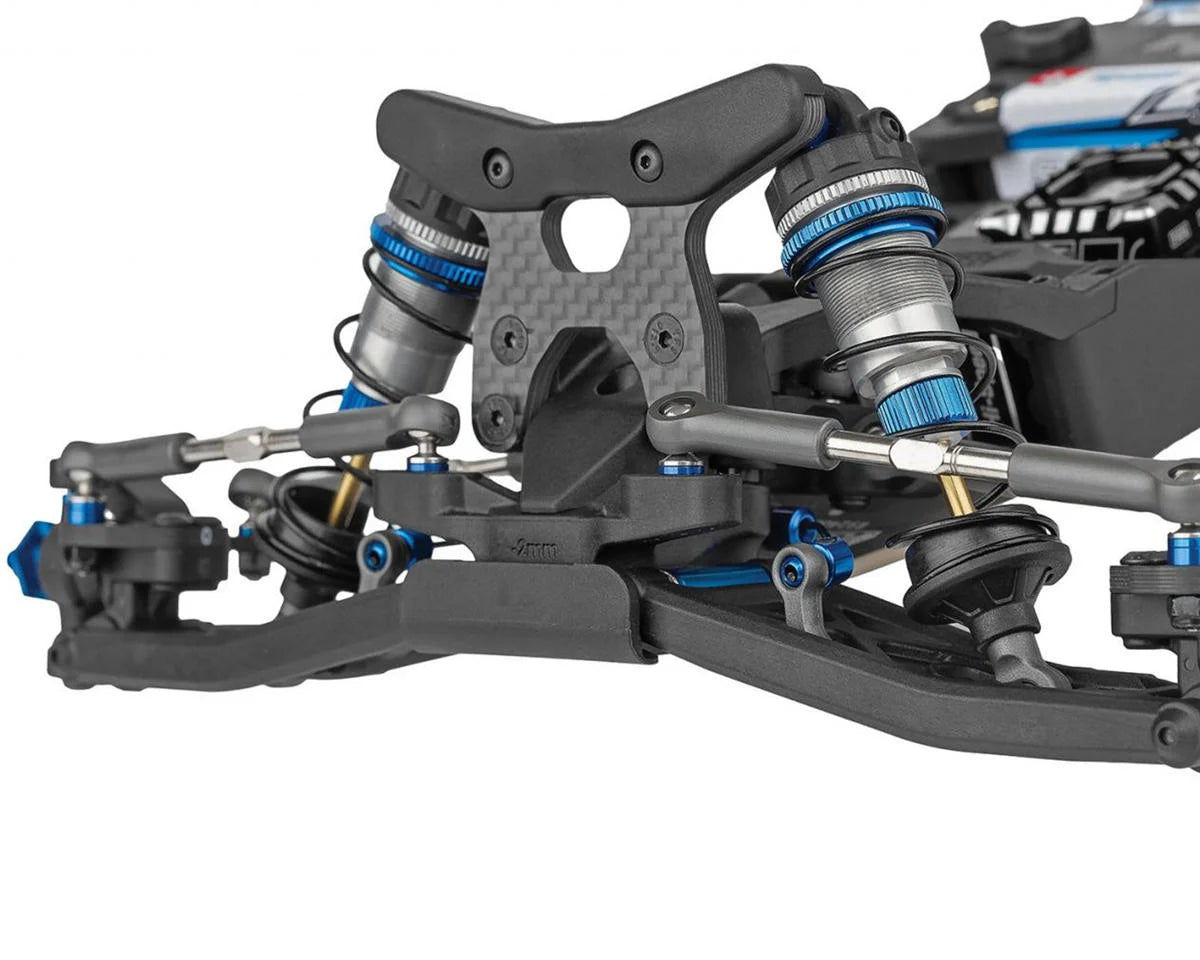

• Front Suspension Arms with Hinge Pin Brace for improved durability

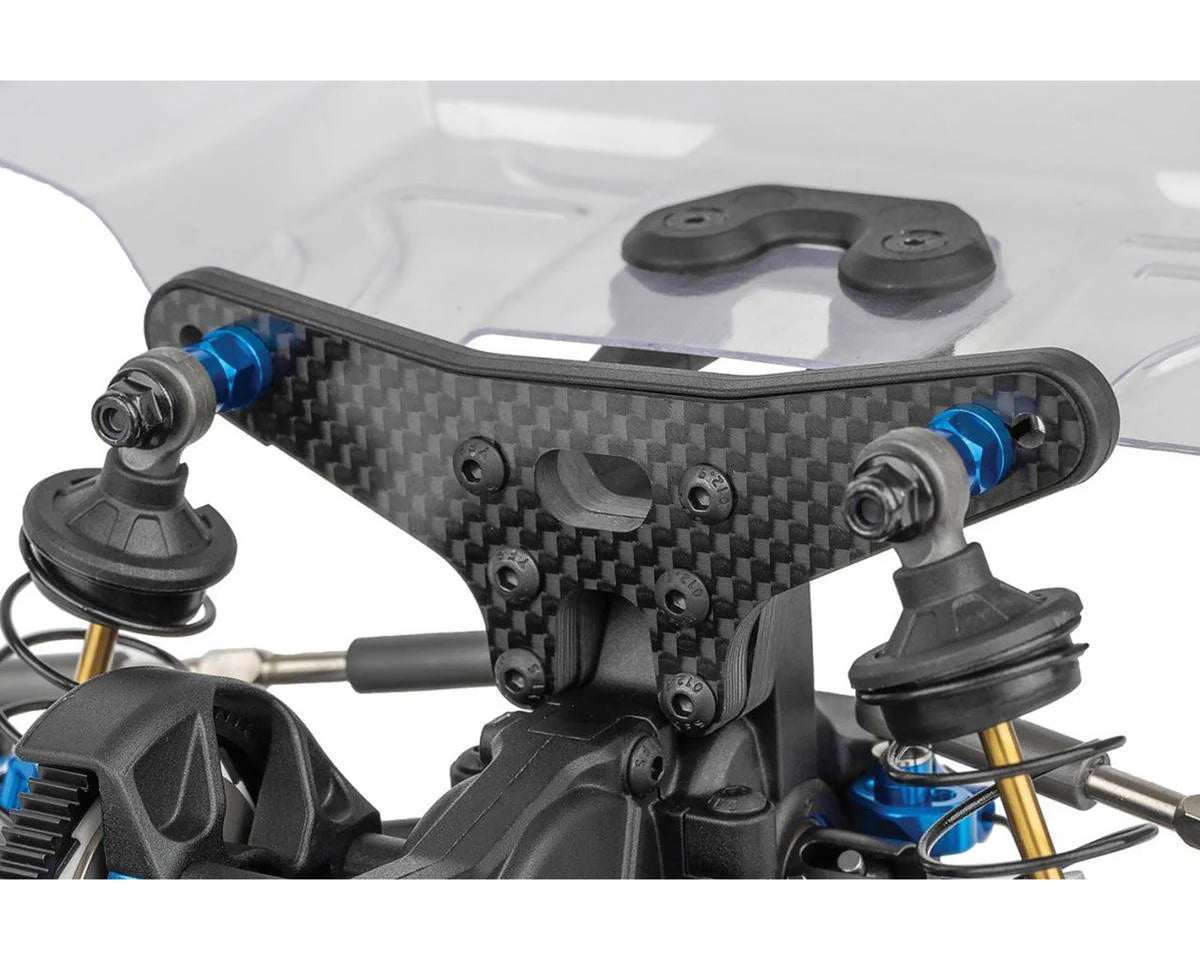

• 2mm Front Shock Tower and FT -2mm Rear Shock Tower included for lower center of gravity
• Includes 81mm Rear Suspension Arms and 71mm CVA Bones
• Includes Ball Differential
• Low-Profile RC10B7 Body, 7-inch Rear Wing, and 2.5-inch Front Wing

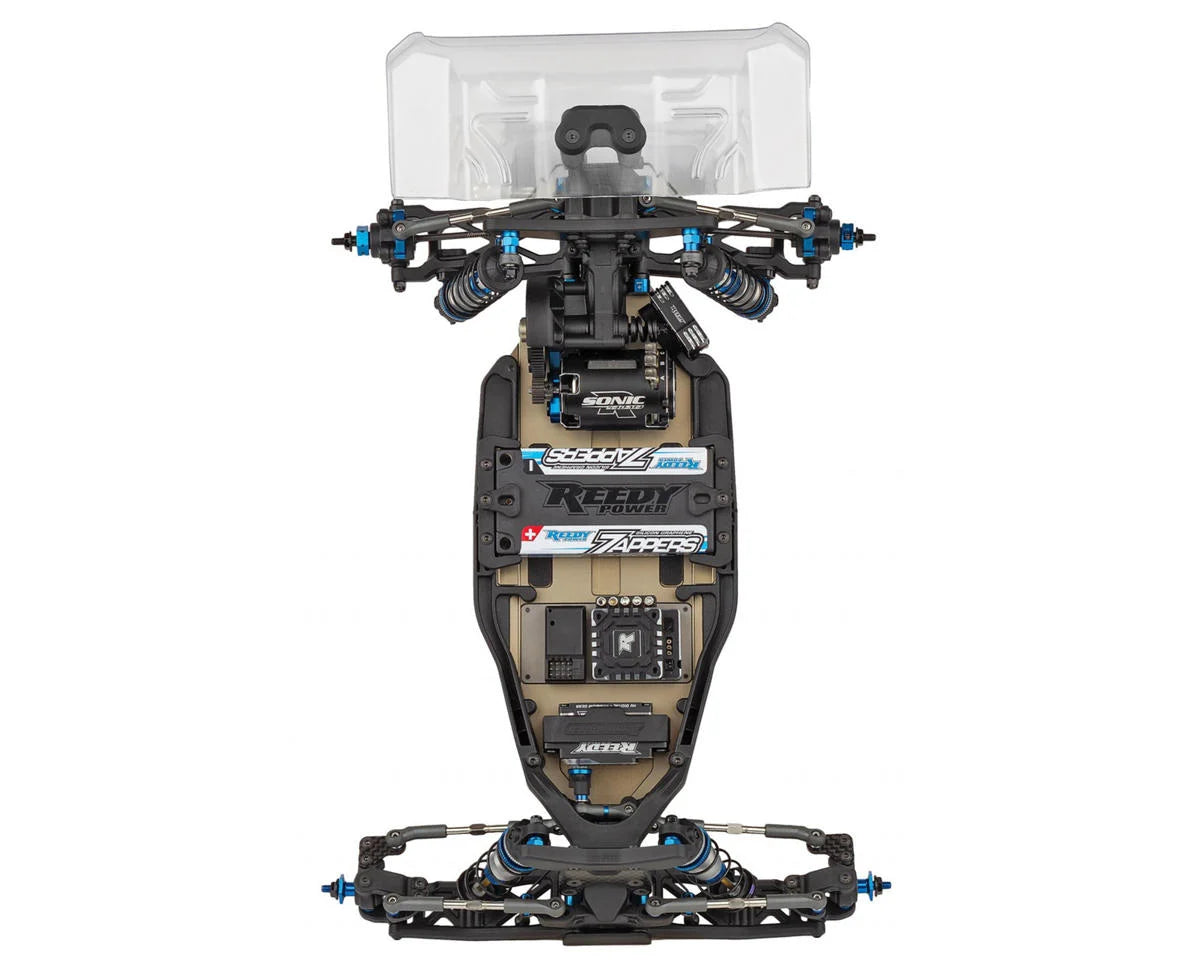

• 7075-T6 Aluminum Chassis with Optional Weight Plate Pockets (Aluminum plate included)
• Shock Tower Covers Front and Rear
• 3.5mm Turnbuckles and Ballcups
• 13mm Big-Bore Shocks

SPECS:

• Power Source: Electric
• Terrain: Off-Road
• Body Style: Buggy
• Scale Size: 1:10 Scale
• Assembly Level: Kit (This vehicle comes as a kit and must be fully assembled by the user. See "Required to Complete" for extra items needed.)
• Length: 390mm (15.35in)
• Width: Varies
• Wheelbase: Varies
• Weight: Varies
• Internal Gear Ratio: 2.60:1
• Drive: 2WD

REQUIRES:

• 1:10 Scale Electric Motor & ESC
• 7.4V-7.6V 2S LiPo with "shorty" Battery Dimensions
• Compatible Battery Charger
• 2-Channel Surface Transmitter, 2-Channel Receiver
• Steering Servo
• Polycarbonate Specific Spray Paint for Body
• 1:10 Scale Off-Road Wheels & Tires
• Tools & Silicone Fluids
