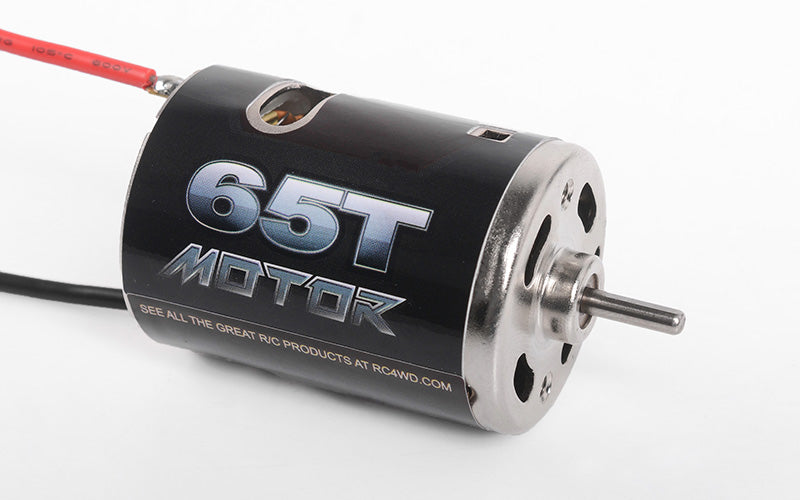

RC4WD 540 Crawler Brushed Motor 65 Turn RC4ZE0002
RC4WD 540 Crawler Brushed Motor 65 Turn RC4ZE0002
Regular price
$24.99 CAD
Regular price
Sale price
$24.99 CAD
Unit price
per
Custom made to fit all popular trucks such as Bully, AX10, Trail Finder!
Specifications:
Custom made 540 Steel case
Chrome plated case
Build in capacitor for minimizing glitch
High torque magnet and rotor
Small footprint (50mm long)
Tuned for Rock Climbing and Scale Driving
Polished Bushings
Body OD: 1.39in / 35.5mm
Output Shaft Length: 0.43in / 11mm
Output Shaft: 0.12in / 3.1mm
Min and Max Voltage Range: 2.4V-30V
Performance Specs:
(At no load) RPM @ 7.2V : 7000 (+/-10%), .65Amp Current
(Max Efficiency) RPM @ 7.2V : 5900 (+/-10%), 2.79Amp Current
Designed Oprating temperature range: -30C to +80C
Motor end play : .50mm max
Noise level: < 60db
Specifications:
Custom made 540 Steel case
Chrome plated case
Build in capacitor for minimizing glitch
High torque magnet and rotor
Small footprint (50mm long)
Tuned for Rock Climbing and Scale Driving
Polished Bushings
Body OD: 1.39in / 35.5mm
Output Shaft Length: 0.43in / 11mm
Output Shaft: 0.12in / 3.1mm
Min and Max Voltage Range: 2.4V-30V
Performance Specs:
(At no load) RPM @ 7.2V : 7000 (+/-10%), .65Amp Current
(Max Efficiency) RPM @ 7.2V : 5900 (+/-10%), 2.79Amp Current
Designed Oprating temperature range: -30C to +80C
Motor end play : .50mm max
Noise level: < 60db
