rc4wd

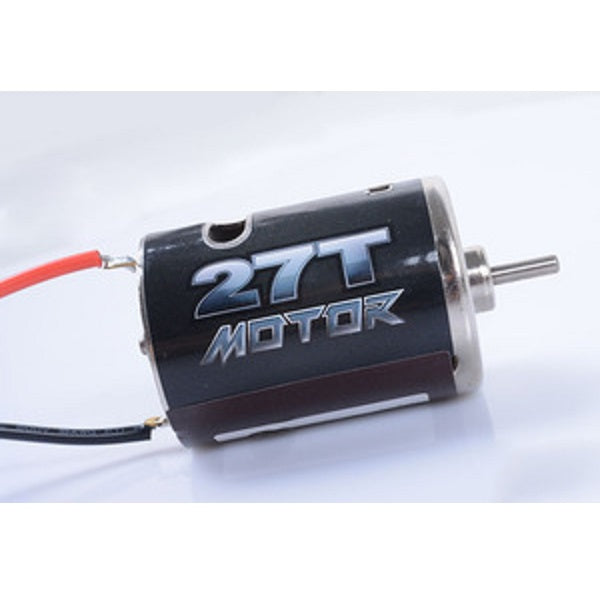

RC4WD 540 Crawler Brushed Motor 27T RC4ZE0067

RC4WD 540 Crawler Brushed Motor 27T RC4ZE0067

Regular price $24.99 CAD
Regular price Sale price $24.99 CAD
Sale Sold out
Shipping calculated at checkout.

Good quality bang for your buck motor, These motors work great for crawlers, scalers, bash rigs and custom projects

RC4ZE0067

540 Crawler Brushed Motor 27T

Standard size 540 Brushed Motor that can be used in all popular RC truck and cars.

Specifications:
Custom Made 540 Steel Case
Chrome Plated Case
Build in Capacitor for Minimizing Glitch
High Torque Magnet and Rotor
Small Footprint (50mm long)
Tuned for Rock Climbing and Scale Driving
Polished Bushings
Body OD: 1.39in / 35.5mm
Length: 1.96in / 50mm
Output Shaft Length: 0.43in / 11mm
Output Shaft OD: 0.12in / 3.1mm
Min and Max Voltage Range: 2.4V-30V
Weight: 5.57oz / 158g

Performance Specs:
(At No Load) RPM @ 7.2V : 15000 +10% , 1.2Amp Current
(Rated load) RPM @ 7.2V : 13600 +10%, 5.02Amp Current
Designed Operating Temperature Range: -10_C to +60_C
Shaft end play: 0.1mm to 0.5mm
Noise Level: < 78DB
