HOT RACING

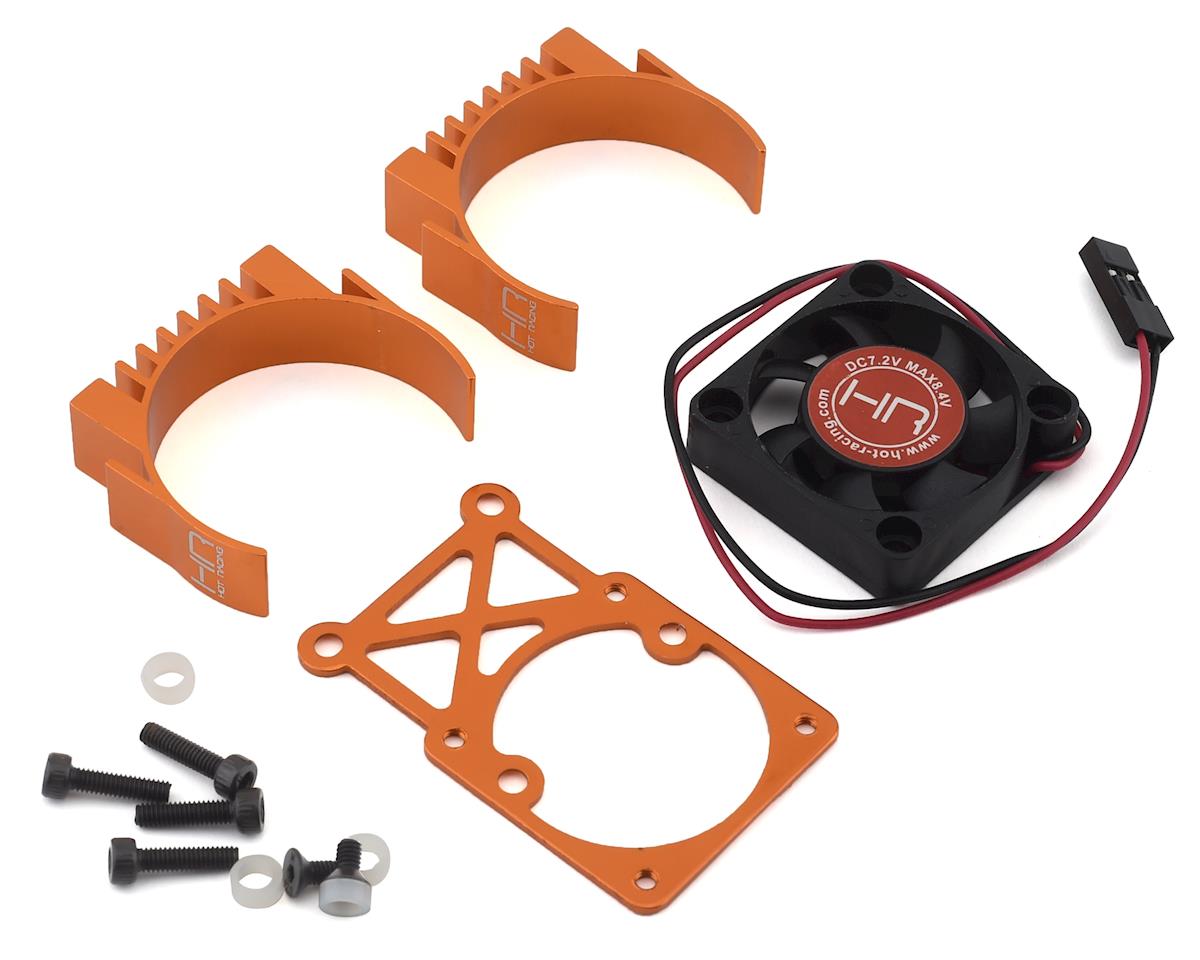

Clip-On Two-Piece Motor Heat Sink w/Fan (Orange)
Clip-On Two-Piece Motor Heat Sink w/Fan (Orange)
Couldn't load pickup availability
This is a Hot Racing Clip-On Two-Piece Motor Heat Sink with Fan, a universal clip on motor heat sink and fan for use on 540 and 550 size motors. Versatile two-piece heat sink clip provides eight different width adjustments.
Features:
Keeps the motor running cooler
Aluminum construction
Clip on heat sink attaches to 540 and 550 size motors with a 36mm can diameter
Two-piece heat sink clip provides 8 different width adjustment options (20-40mm). M3 screws and nuts will be required for some configurations.
Orange anodized
Laser etched Hot Racing insignia
Specifications:
Overall height: 39mm (1.54 inch)
Fan size: 30x30x7.5mm
Fan mounting hole pattern: 24mm square
Input voltage: DC 7.2-8.4V MAX
