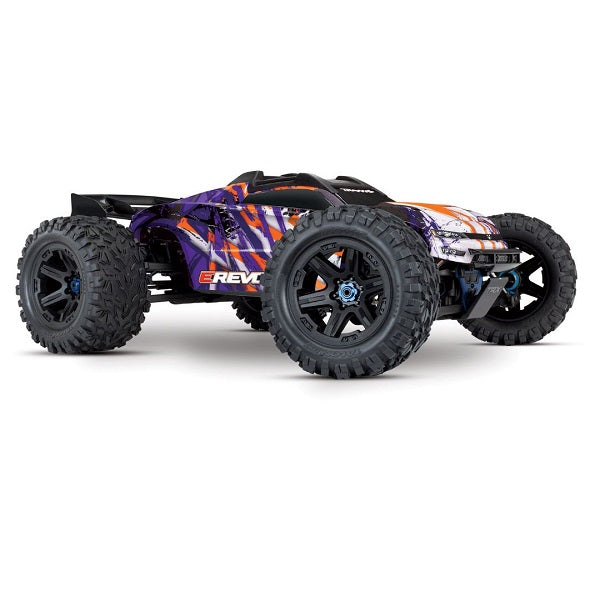

TRAXXAS E-REVO 2 PURPLE

TRAXXAS E-REVO 2 PURPLE

Regular price $769.98 CAD
Regular price $879.99 CAD Sale price $769.98 CAD
Sale Sold out
Shipping calculated at checkout.

The Traxxas E-Revo 2.0 is a beast of a rig. Dual Batteries , huge tires and long travel suspension makes this truck a juggernaut among others. Chris’s House stands by the Revo

DETAILS

With just a handful of parts carrying over from the previous generation, the next generation E-Revo packs dozens of upgrades to make it the ultimate go-to vehicle for insane stunts and backyard bashing.

Vehicle Specs
Length: 23.05 inches (585mm)
Width: 18.32 inches (465mm)
Ground Clearance: 2.9 inches (73mm)
Weight: 11.2lb (5.08kg)
Height: 8.7 inches (221mm)
Wheelbase: 14.94 inches (380mm)
Front Shock Length: 3.42 inches (87mm)
Rear Shock Length: 3.42 inches (87mm)
Tires (pre-glued): 6.4 x 3.5 inches (162mm x 88mm)
Wheels: 3.8 inches (97mm)
Speed Control: Velineon VXL-6s
Motor (electric): 2200kV
Transmission: Single speed
Gear Pitch: 1.0 Metric pitch (Mod-1)
Final Drive Ratio: 20.49:1
Differential Type: Sealed, 4-gear
Center Differential Type: Sealed, 4-gear (20M weight oil)
Chassis Structure / Material: Composite tub
Brake Type: Electronic
Drive System: Shaft driven 4WD
Steering: Bellcrank
Radio System: TQi 2-channel transmitter with 6533 TSM receiver
Servo: Dual 2075
Top Speed (optional gearing): 70+ mph
Skill Level: 3
Battery Compartment: 156mm x 50mm x 29mm
Motor Specs
Type: 2200kV Sensorless brushless
Weight: 14.32oz (406g)
Length: 2.97 inches (75.5mm)
Diameter: 1.65 inches (41.8mm)
Connector Type: Traxxas 6.5mm bullet connectors
ESC Specs
Input Voltage (cells): 4s-6s LiPo (max: 25.2 volts)
Case Size: 2.28" (58mm) x 2.83" (72mm) x 1.81" (46mm)
Weight: 7.30oz (207g)
BEC Voltage: 6.0 V
BEC Current Continuous: 10 A
BEC Current Peak: 20 A
Reverse Delay: Yes, with lockout
Ports: RX Input, Auxiliary Fan, Traxxas Accessory Port

Features:

  • VXL-6s Waterproof Electronic Speed Control
    • 6s LiPo compatible
    • Integrated cooling fan
    • Real-time telemetry via Traxxas Link
    • Machined heat sink
    • 3-LED status indicators
    • Powered accessory ports
    • 10-gauge silicone wire
    • Patented Traxxas High-Current Connectors
  • Velineon 2200kV Brushless Motor
    • 4-pole 2200kV brushless motor
    • 5mm output shaft
    • Finned can for better heat dissipation
  • Up to 70+ mph with Two 3s LiPo Batteries
  • Traxxas Stability Management (TSM)
    • Improves straight line acceleration and braking on low-traction surfaces
    • Never dulls throttle or slows the truck
    • Adjusts from off to 100% assistance from the transmitter
  • TQi 2.4GHz High Output Radio System
    • TQi 2-channel transmitter
    • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
    • Programmable multi-function knob
    • Adjustable steering and throttle percentage (dual rates)
    • Adjustable steering and throttle sensitivity (exponential)
    • Adjustable steering and throttle end points
    • High 13ms frame rate and near-zero latency for responsive control
    • 5-channel micro receiver (#6533) with fail-safe security
    • Patented waterproof receiver box with easy-access plug
  • Drivetrain
    • Maxx-Spec steel CV driveshafts
    • 8mm steel stub axles
    • Heavy-duty telescoping center driveshafts
  • Transmission
    • Mod-1 pinion and spur gears
    • Fixed gear mesh system
    • Torque-Biasing Center Drive
    • Cush Drive (no slipper clutch)
    • 5mm aluminum motor plate
  • Differentials
    • Heavy-duty sealed 4-gear design
    • Redesigned bulkheads with underside access
    • Maxx-Spec ring and pinion gears
    • Large 8mm output shafts
    • Steel drive cups
  • Suspension
    • Oil-filled GTR shocks with height-adjustable threaded aluminum bodies
    • Inboard rocker arm suspension design for extreme articulation
    • Low-CG design improves handling and protects components
    • Upgraded heavy-duty axle carriers with oversized bearings
    • Heavy-duty rocker arms and rod ends
  • Chassis
    • Reinforced composite tub for greater durability
    • Vented internal battery compartments with quick-release doors
    • Low-CG design for improved handling
    • Tough skid plates for driveline protection
  • ProGraphix Body
    • Clipless body mounting system
    • Tough internal frame
    • Adjustable rear wing
    • External reinforcement for rollover protection
  • Wheels and Tires
    • Aggressive Talon EXT all-terrain tires
    • New tire construction resists ballooning
    • Tough 3.8" black wheels
    • Splined 17mm blue aluminum axle hubs
  • Steering
    • High-throw bellcrank steering design
    • Dual waterproof 2075 servos for 250 oz.-in. of torque
  • Sealed Ball Bearings
  • Hex hardware with Rust-Resistant Black Oxide Coating

What's In The Box:

  • E-Revo with VXL-6s ESC and 2200kV motor
  • Quick Start Guide
  • TQi 2.4GHz radio system
  • High quality maintenance tools

What You'll Need:

  • Batteries
    • E-Revo requires dual 2s LiPo batteries or dual 3s LiPo batteries.
  • Charger
    • Traxxas EZ-Peak Live charger (TRA2971) is recommended for easy and fast charging performance
  • AA Alkaline Batteries
    • Four AA alkaline batteries for the transmitter
