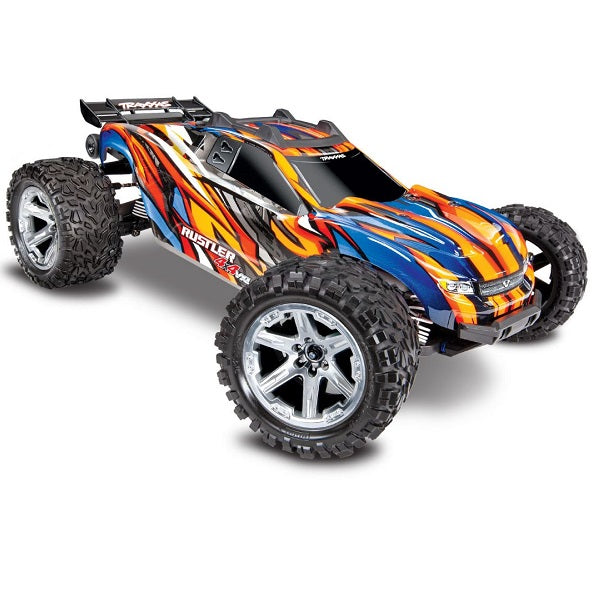

TRAXXAS Rustler VXL Brushless 1/10 RTR 4x4 Stadium Truck - ORANGE
TRAXXAS Rustler VXL Brushless 1/10 RTR 4x4 Stadium Truck - ORANGE
Rustler 4×4 VXL
THE RC STADIUM TRUCK REDEFINED
The all-new Rustler 4X4 VXL is a hard-charging wheelie machine that captures the speed and classic style of the number-one-selling Rustler and injects it with brutal 4-wheel drive performance, increased durability, and even more fun! Bury the throttle and the Rustler 4X4 VXL launches its front wheels skyward as it shreds the ground underneath. Beneath the sleek clipless body, the heavy-duty driveline delivers extreme Velineon brushless horsepower. The larger Talon EXT wheels and tires provide versatility and grip for any terrain, from backyard trails to concrete skate parks. Rustler 4X4 VXL destroys convention to become the new performance and fun standard for 4X4 stadium trucks!
DETAILS
Details make the difference when Traxxas engineers set their focus on making the performance and durability gains that make Rustler 4X4 VXL such a huge standout for high-speed fun.
Vehicle Specs | |
---|---|
Length: | 18.78 inches (477mm) |
Width: | 12.94 inches (329mm) |
Ground Clearance: | 1.1 inches (27mm) |
Weight: | 5.12lbs (2.32 kg) |
Height: | 6.35 inches (161mm) |
Wheelbase: | 11.62 inches (295mm) |
Front Shock Length: | Long |
Rear Shock Length: | XX-Long |
Tires (pre-glued): | 4.5" x 2.3" (114mm x 58mm) Talon EXT |
Wheels: | 2.8 inches (71mm) Black Chrome |
Speed Control: | VXL-3s |
Motor (electric): | Velineon 3500 Brushless |
Transmission: | Single speed |
Overall Drive Ratio: | 13.97:1 |
Differentials: | Sealed, 2-gear |
Chassis Structure / Material: | Composite tub |
Brake Type: | Electronic |
Drive System: | Shaft driven 4WD |
Steering: | Bellcrank with integrated servo saver |
Radio System: | TQi 2.4GHz 2-ch transmitter with #6533 TSM receiver |
Servo: | Waterproof #2075 |
Top Speed (optional gearing): | 65+ mph with 3-cell LiPo and 20/54 gearing |
Skill Level: | 1 |
Battery Compartment: | 162mm x 50mm x 25mm *42mm with optional battery strap (sold separately) |
Motor Specs | |
Type: | Velineon 3500kV sensorless brushless |
Weight: | 9.24oz (262g) |
Length: | 2.20 inches (56mm) |
Diameter: | 1.41 inches (36mm) |
Connector Type: | 3.5mm bullet |
ESC Specs | |
Input Voltage (cells): | 4.8 - 11.1V (4-9 cells NiMH), 2S-3S LiPo |
Case Size: | 2.19" (56mm) x 1.54" (39mm) x 1.3" (33mm) |
Weight: | 3.84oz (109g) |
BEC Voltage: | 6.0 V |
Reverse Delay: | Yes, with lockout |
Thermal Protection: | Two-stage thermal shutdown |
Ports: | Auxiliary fan |
Features:
-
VXL-3s Waterproof Electronic Speed Control
- Three Programmable Drive Profiles:
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode - 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set one-button setup
- Large heat sink
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 4-9 cells (4.8 to 10.8 volts)
- LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)
- Three Programmable Drive Profiles:
-
Velineon 3500kV Brushless Motor
- Ultra high-temperature sintered Neodymium magnets
- Optimized for power and efficiency in 1/10th scale vehicles
- Low-maintenance, unique Traxxas design
- Efficient, high-speed ball bearings
- Precision-balanced rotor
- 3500kV
- Brilliant blue-anodized finish
- Up to 65+ mph with 3S LiPo battery
-
Traxxas Stability Management (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
-
TQi 2.4GHz High Output Radio System
- TQi 2-channel transmitter
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Programmable multi-function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle end points
- 5-channel micro receiver (#6533) with fail-safe security
- Patented waterproof receiver box with easy-access plug
-
Clipless ProGraphix Body
- Easy one-handed removal
- Reinforced inner cage
- Strong oversized latch
- Rugged roof rollover protector
- Molded composite plastic wing
-
Chassis
- Low-CG design for responsive handling
- Modular composite tub design
- Latching battery hold-down
- Reinforced integrated wheelie bar
- High-approach front bumper to climb curbs
-
Suspension
- Adjustable toe and camber links
- New impact-resistant suspension arm composite
- Oil-filled Ultra Shocks
- Rugged front and rear shock towers
- White powder-coated progressive springs
-
Steering
- Chassis-mounted #2075 servo
- Dual bellcrank design with integrated servo saver
-
Drivetrain
- New extreme heavy-duty driveshafts
- Oil-filled steel gear front and rear differentials
- Large 32-pitch gearing
- Torque Control heavy-duty slipper clutch with aluminum pads
- Anodized-aluminum center driveshaft
-
Wheels and Tires
- Large 2.8" black chrome wheels
- 2.8" Talon EXT tires
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
What's In The Box:
- Rustler 4X4 VXL with Velineon VXL-3s and 3500kV motor
- Quick Start Guide
- TQi 2.4GHz radio system
- High quality maintenance tools
What You'll Need:
-
Batteries
- Rustler 4X4 VXL requires a single NiMH or LiPo battery.
-
Charger
- Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance TRA2971
-
AA Alkaline Batteries
- Four AA alkaline batteries for the transmitter
