traxxas

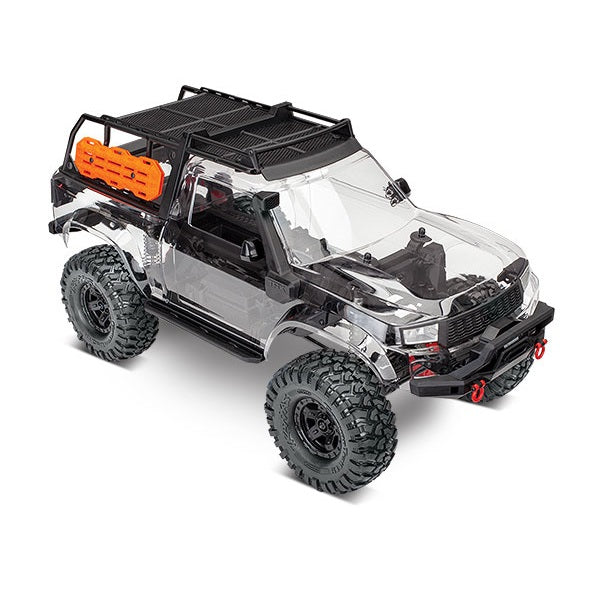

Traxxas TRX-4 Sport Unassembled Kit

Traxxas TRX-4 Sport Unassembled Kit

Regular price $419.99 CAD
Regular price $419.99 CAD Sale price $419.99 CAD
Sale Sold out
Shipping calculated at checkout.

The TRX4 Sport kit is the Xtra fun way of exploring the TRX4 platform. Vova {our social media powerhouse dude} built his up and we were super pumped to see how it turned out. Fit and finish are great. The kit requires electronics, tools and paint and can be customized in any way. We love it!!!

Features:

  • Easy to follow full-color assembly manual
    • True-to-scale part illustrations and ruler charts
    • Helpful assembly tips and clear illustrations
  • Clear TRX-4 Sport body
    • Body comes pre-cut and ready to mount
    • Includes window masking and decals
    • Includes Expedition Rack with scale accessories
    • Front grille and rear tail gate with lenses for LED lights
    • Rugged front and rear bumpers with red D-rings
    • (Requires polycarbonate paint)
  • Portal Axles
    • Increase ground clearance
    • Eliminate torque twist
    • Steel gears
    • Improve axle geometry and reduce strain on driveshafts
  • Rigid Steel Frame
    • 1.5 mm thick steel frame rails increase torsional rigidity
    • Innovative design allows four wheelbase positions (300 mm, 312 mm (standard), 324 mm, 336 mm)
    • Adjustable rear shock tower positions
    • Bumpers adjust fore and aft
    • Rugged rock rails adjust for width
    • Wire routing clips integrated into frame rails
  • Drivetrain
    • Full-time shaft driven 4-wheel drive
    • Tough 6 mm stub axles
    • Steel front CV driveshafts
    • Hardened steel rear axle shafts
    • Steel gear transfer case
  • Innovative Battery Compartments
    • Hinged battery strap allows quick and easy battery access
    • No pins to lose
    • Accommodates different height batteries
    • Accepts full-size long battery packs
    • Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
  • Transmission
    • Single-speed with steel gears
    • Twin friction plate slipper clutch
    • Easily removed for servicing
  • Steering
    • Accepts standard size servos
    • Superior 45° steering angle
    • Direct steering (no servo saver)
    • Steering geometry corrected for bump steer
  • Suspension
    • Front - 3 link with panhard
    • Rear - Triangulated 4 link
    • Pre-assembled heavy-duty rod ends with steel hollow balls
    • 5 mm diameter steel link rods with 4 mm threaded ends
  • Pre-assembled aluminum GTS Shocks
    • Coilover GTS shocks exclusive to TRX-4 chassis
    • Silver-anodized aluminum bodies
    • Threaded bodies with collars easily adjust ride height
    • Silky smooth damping for the toughest trails
    • O-ring cap seal and dual X-ring shaft seals
    • Shock oil included in kit
  • Wheels and Tires
    • 1.9" Canyon Trail tires with trail-tuned foam inserts
    • Tough black scale wheels
    • Trail tuned S1 rubber compound
    • 12 mm steel hex
    • Tire glue required
  • Patented O-Ring sealed watertight receiver box keeps micro receivers dry
  • Sealed Ball Bearings
  • Hex hardware with rust-resistant black oxide coating
Kit Specs
Length: 21.93 inches (557 mm)
Front Track: 9.78 inches (249 mm)
Rear Track: 9.78 inches (249 mm)
Ground Clearance: 3.14 inches (80 mm)
Weight: 92.6 ounces (2.63 kg) (with electronics installed)
Height: 9.47 inches (241 mm)
Wheelbase: 12.28 inches (312 mm)
Front Shock Length: 3.54 inches (90 mm)
Rear Shock Length: 3.54 inches (90 mm)
Approach Angle: 58.82°
Departure Angle: 45.83°
Breakover Angle: 59°
Front Wheels: 1.9 x 1.02 inches (49 x 26 mm)
Rear Wheels: 1.9 x 1.02 inches (49 x 26 mm)
Front Tires: 4.64 x 1.89 inches (118 x 48 mm)
Rear Tires: 4.64 x 1.89 inches (118 x 48 mm)
Wheel Hex: 12 mm
Speed Control: Sold separately
Motor (electric): Sold separately
Differential Type: Spool (no differential)
Transmission: Single speed
Gear Pitch: 32
Chassis Structure/Material: Steel Ladder Frame with Nylon Composite Crossmembers
Drive System: Shaft-Driven 4WD
Radio System: Sold separately
Skill Level: 2
Battery Tray: 158.75 L x 47 W x 23/26 mm H
