Traxxas TRX4 Unassembled 1/10 Crawler Kit TRA82016
Traxxas TRX4 Unassembled 1/10 Crawler Kit TRA82016
Couldn't load pickup availability
TRX-4 Chassis Kit
The Traxxas TRX-4 Scale and Trail Crawler set the standard for off-road versatility with its radical design and rugged durability. The new TRX-4 chassis kit combines the same innovative features as the RTR vehicle with the fun and excitement of building your own kit. Build your own portal axles, high/low range transmission, and remotely locking differentials. All the parts are organized neatly in labeled bags with waterproof electronics and pre-assembled shocks and suspension links. A fully illustrated color manual makes the kit as much fun to construct as it is to take off-road.

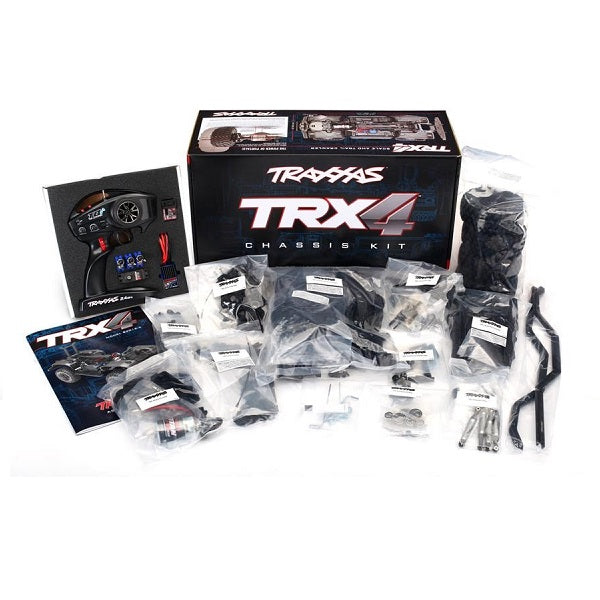

WHAT'S INCLUDED IN THE KIT:
- Unassembled TRX-4 Chassis Kit
- TQi 2.4GHz 4-channel radio system with 4 servos
- XL-5 HV waterproof ESC
- Titan 21T 550 motor
- Full-color step-by-step assembly manual
WHAT YOU'LL NEED:
- TRX-4 compatible body (312 mm)
- 4 AA alkaline batteries
- Battery with Traxxas High-Current Connector
- 6 or 7 cell NiMH battery pack
- 2s or 3s LiPo battery pack
- Battery charger
- Metric hex drivers
- 1.5 mm, 2.0 mm, 2.5 mm
- Basic hand tools
- screwdrivers, needle nose pliers
- CA glue
- Safety glasses
Kit Specs | |
---|---|
Length: | 20.57 inches (523 mm) |
Front Track: | 9.78 inches (249 mm) |
Rear Track: | 9.78 inches (249 mm) |
Ground Clearance: | 3.14 inches (80 mm) |
Weight: | 102.72 ounces (2.91 kg) |
Height: | 10.47 inches (266 mm) |
Wheelbase: | 12.28 inches (312 mm) |
Front Shock Length: | 3.54 inches (90 mm) |
Rear Shock Length: | 3.54 inches (90 mm) |
Approach Angle: | 63.82° |
Departure Angle: | 43.22° |
Breakover Angle: | 59° |
Front Wheels: | 1.9 x 1.02 inches (49 x 26 mm) |
Rear Wheels: | 1.9 x 1.02 inches (49 x 26 mm) |
Front Tires: | 4.64 x 1.89 inches (118 x 48 mm) |
Rear Tires: | 4.64 x 1.89 inches (118 x 48 mm) |
Wheel Hex: | 12 mm |
Speed Control: | XL-5 HV |
Motor (electric): | Titan 21T reverse rotation |
Differential Type: | 4 gear, remote locking |
Transmission: | 2-speed Hi-Lo, remote shifting |
Gear Pitch: | 32 |
Chassis Structure/Material: | Steel ladder frame with Nylon composite cross members |
Brake Type: | Electronic "Hill Hold" |
Drive System: | Shaft-driven 4WD |
Steering: | Chassis mounted 2075X metal gear servo |
Radio System: | TQi 2.4 GHz 4-channel transmitter with #6533 receiver |
Skill Level: | 2 |
Battery Tray: | 158.75 mm L x 47 mm W x 23/26 mm H |
