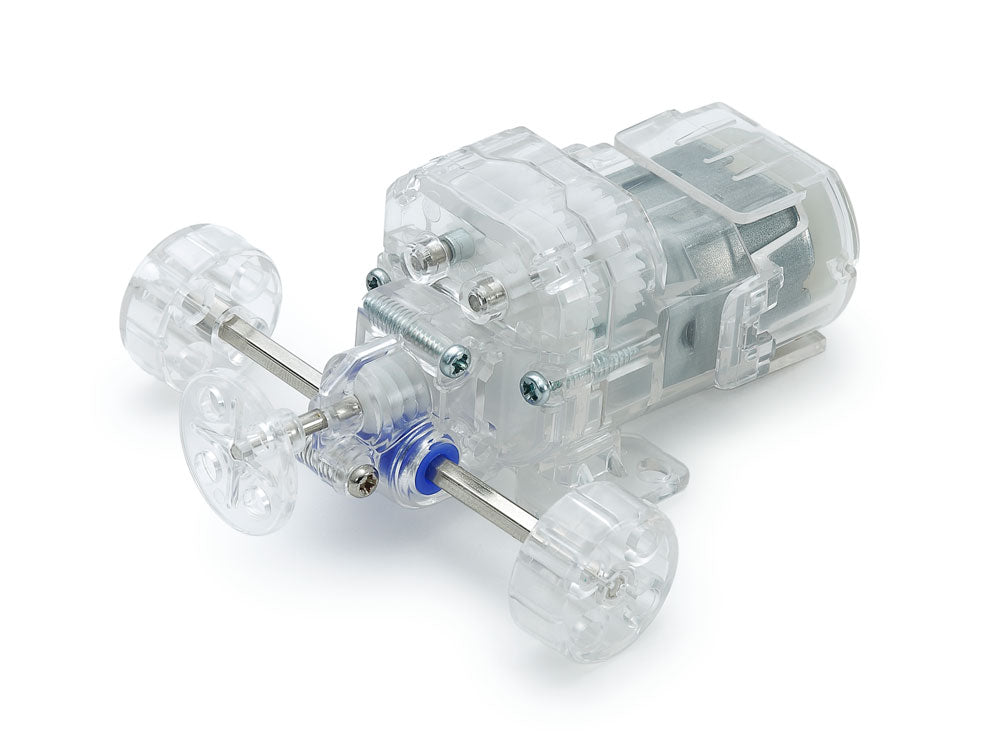

UNIVERSAL GEARBOX 2

TAM70260

This assembly type gearbox has two shafts which provide independent motion; each shaft offers three gear ratios, and you can change the attachment position of the removable mount to switch between four different output directions.

Clear parts leave internal mechanisms visible.

Crank plates are included.

Specifications
★Length: 63mm, width: 29.8mm, height: 27.8mm (dimensions when assembled)

★Shaft section width: 13.4mm

★Type 130 motor included.

★3mm hex shaft gear ratios are 102.4:1, 273.1:1 and 728.2:1

★2mm shaft gear ratios are 8.5:1, 22.8:1 and 60.7:1

★Crank plates and small parts for attachment are included.
