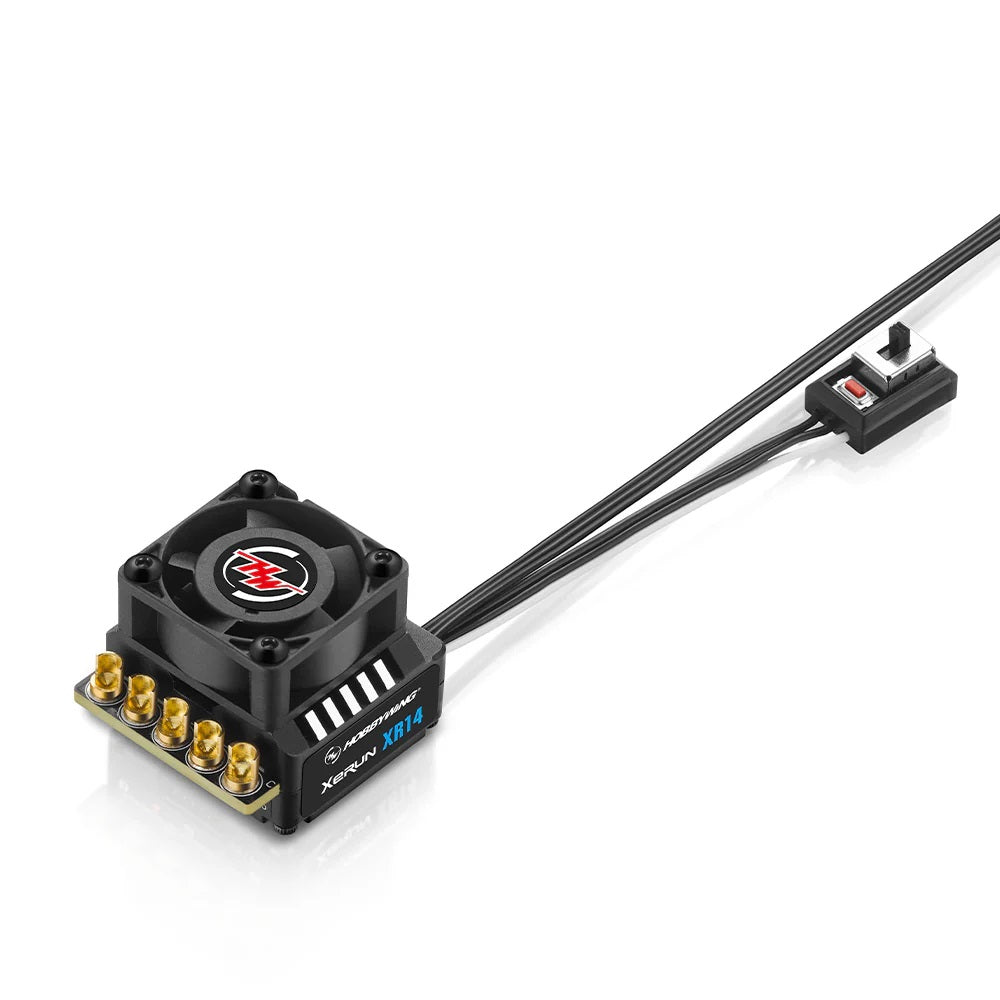

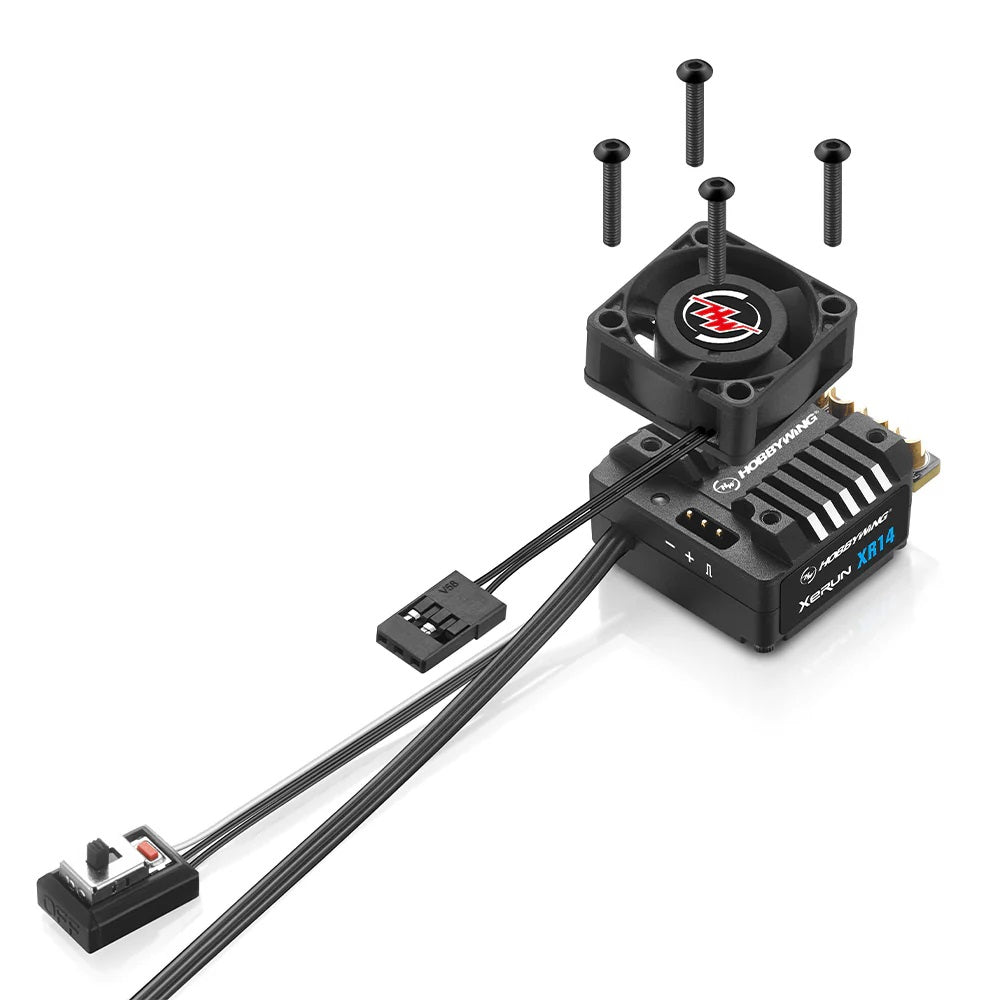

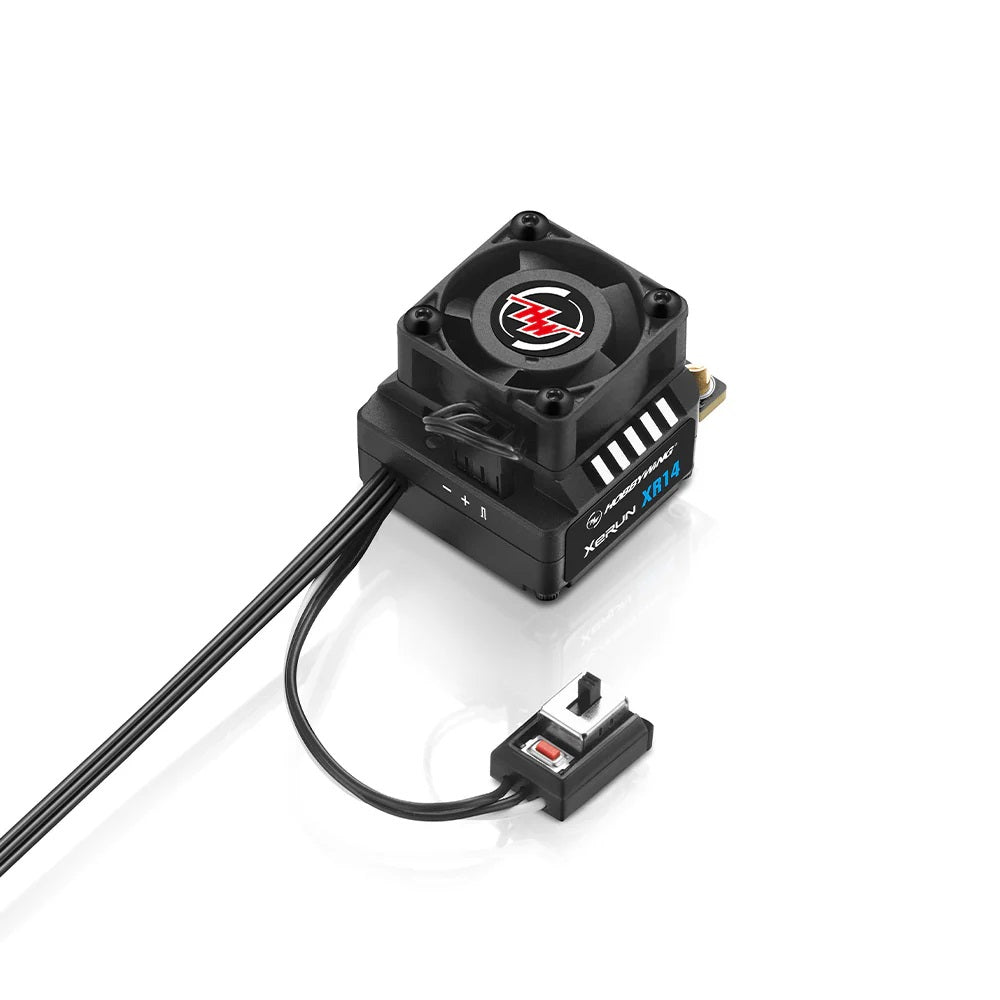

Xerun XR14 ESC

HWI30112622

Xerun XR14 ESC

XERUN XR14: Take your 1/14 scale racing to the next level!

INCLUDES:

• (1) XERUN XR14 ESC
• (1) Manual
• (1) Double Sided Tape, Decal

FEATURES:

• Two selectable profiles tailored for RC car racing.
• Adjustable PWM and brake frequencies allow precise regulation of motor driving and braking forces.
• Innovative softening function by HOBBYWING enables power delivery tuning for enhanced driving efficiency.
• Comprehensive protections include low-voltage cutoff, ESC and motor thermal protection, fail-safe (throttle signal loss), and reverse polarity protection.
• Data recording function supports OTA Bluetooth module to view power system running data via the HW LINK App, simplifying performance analysis.
• Firmware upgrades available through Hobbywing LCD Program Box Pro/G2 or OTA Programmer (sold separately).

SPECS:

• Cont./Peak Current: 70A/3000A
• LiPo/NiMH Cells: 2S LiPo
• BEC Output: 6V/7.4V @ 4A(Switch-mode)
• Cooling Fan: Powered by the BEC voltage
• Motor Limit: KV=6000 or =8.5T 2848(380)&3650(540) size motor
• Size: 35.2 x 31.3 x 28.5mm (w/Fan)
• Weight: 66g(w/ wires)
• Programming Port: Shared with Fan port
