TAMIYA

XM-01 PRO Chassis TAM58738 KIT

XM-01 PRO Chassis TAM58738 KIT

Regular price $479.99 CAD
Regular price Sale price $479.99 CAD
Sale Sold out
Shipping calculated at checkout.

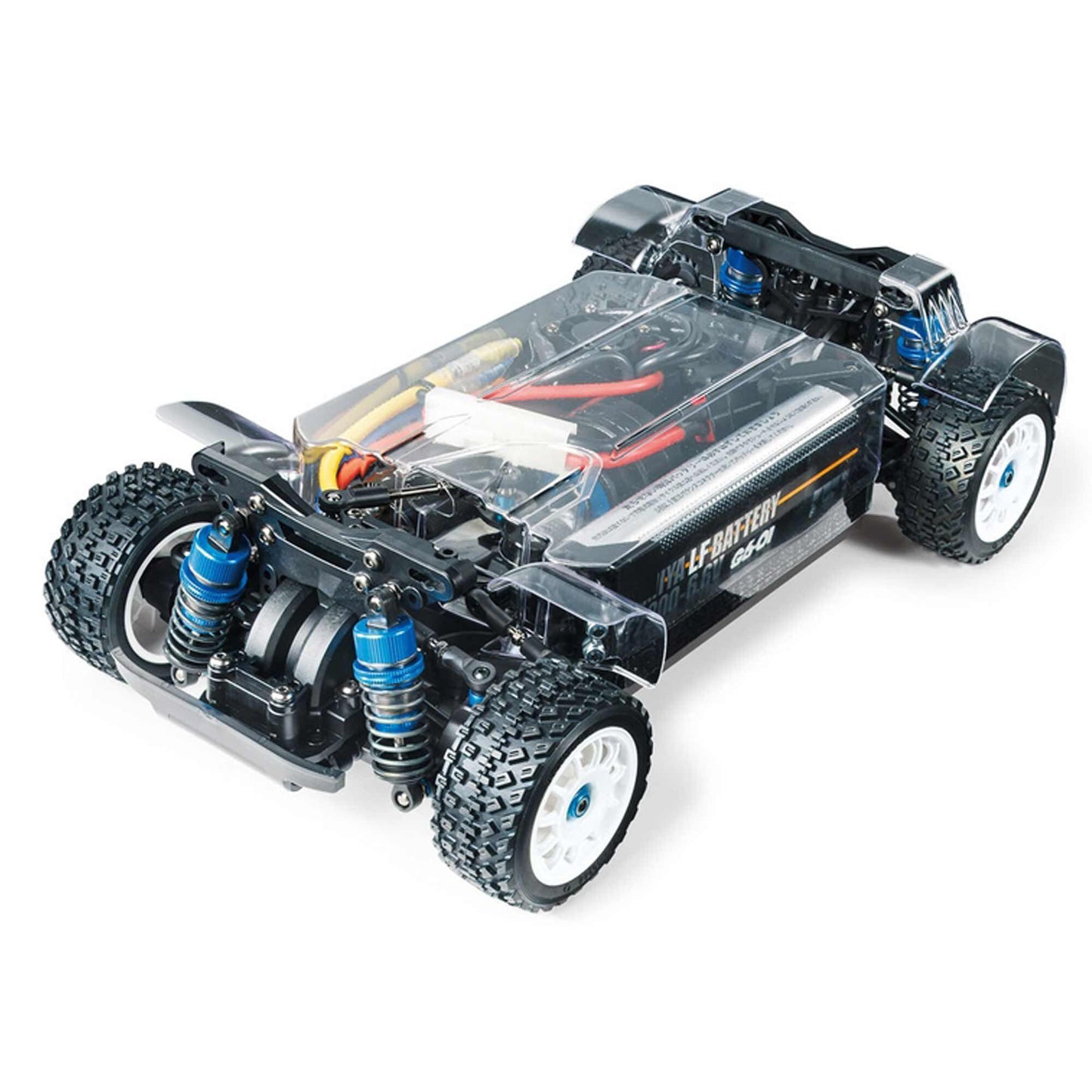

Pro specification level R/C rally driving now comes to our M-Chassis size vehicle offerings! This shaft-driven 4WD chassis assembly kit (M-chassis size) features three types of wheelbases, new suspension components and a polycarbonate chassis cover. Just pick your favorite Tamiya M-chassis size rally body and you’re ready to take on dirt!

Features

  • Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance.
  • Use 39T gear (w/15T gear) on the front and 40T gear (w/15T gear) on the rear for drive balance bias to front and vice-versa for drive balance bias to rear.
  • Features a longitudinal upright battery pack position in the center-left for optimum balance.
  • Front bumper with skid angle contributes to reduced surface contact.
  • Aluminum dampers included.
  • M-Chassis 11-spoke racing wheels (Item 51394) are paired with 60D rally block tires (Item 51427).
  • Front and rear universal drive shafts included for optimum drive efficiency.
  • Compatible with center diff setup and separately sold slipper clutch.
  • Select Hop-Up Option parts for the XV-02 PRO chassis kit can be used with the XM-01.
  • Low-profile servo is recommended. (Standard size servo can be used, but it meets the front inside polycarbonate cover.)



Ball Bearings Full Ball Bearings
Battery Sold Separately
Body Polycarbonate
Charger Sold Separately
Chassis XM-01 FRP Fiberglass Reinforced Plastic
Completion Level Kit
Differential Gear Oil-Filled Type
Drive Type Forward/Brake/Reverse
Drivetrain 4WD
Gear Ratio Adjustable
Motor Size Sold Separately 540
Power Type Electric
Radio Sold Separately
Receiver Sold Separately
Scale 1/10
Servos Sold Separately
Shock Type Oil-Filled Damper
Speed Control Sold Separately
Suspension Fully Independent Double Wishbone
Vehicle Size Standard
Vehicle Type Rally Car
